A10S-OLinuXino-MICRO

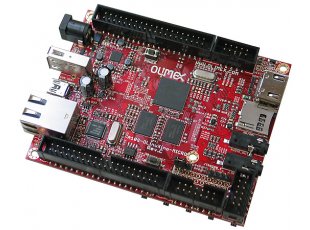

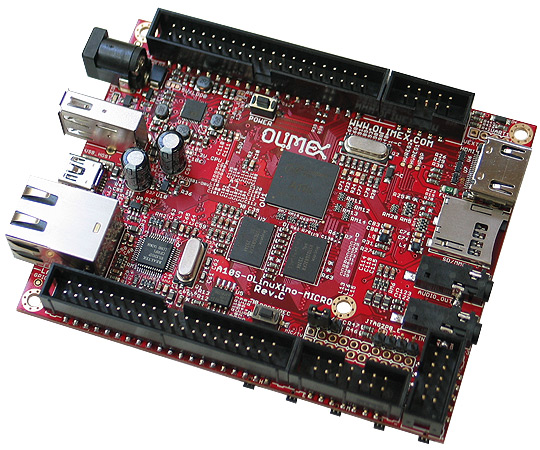

A10S-OLinuXino-MICRO - Open Source Hardware Board
A10S-OLinuXino-MICRO - Open Source Hardware Board A10S-OLinuXino-MICRO - Open Source Hardware Board A10S-OLinuXino-MICRO - Open Source Hardware Board
Open Source Hardware Embedded ARM Linux Single board computer with ALLWINNER A10S CORTEX-A8 at 1GHz

Select Product Variant

  • A10S-OLinuXino-MICRO
  • A10S-OLinuXino-MICRO-4GB

This item is OBSOLETE

N/AEUR

A10S is not recommended for new designs - please read more at the following link:click

A10S is a processor from Allwinner with Ethernet and HDMI support. Aside from the A10S Cortex-A8 @ 1GHz the board also has 512MB RAM + Ethernet 100Mbit + USB Host/USB-OTG + SD-card + SD-MMC card + HDMI is released. It can be used as a media center, general Android device or a general-purpose Linux device

FEATURES

  • A10S Cortex-A8 processor at 1GHz, 3D Mali400 GPU, NEON
  • 512MB RAM
  • NO NAND FLASH memory
  • NO BUILT-IN OS
  • USB High-speed host with power control and current limiter
  • USB-OTG with power control and current limiter
  • HDMI output with ESD protectors
  • 100MBit native Ethernet
  • Audio Line-input
  • Audio Headphones output
  • UEXT connector
  • LCD connector to work with 4.3, 7.0, 10.1" LCD modules from Olimex
  • 50 GPIOs on three GPIO connectors
  • MicroSD card connector
  • SD/MMC card connector
  • DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
  • STATUS LED
  • Power LED
  • 2KB EEPROM for MAC address and other storage
  • 5 BUTTONS with ANDROID functionality + BOOT/REC and POWER buttons
  • Microphone input on connector (not populated)
  • Composite TV-output on connector (not populated)
  • JTAG-DEBUG connector (not populated)
  • UART1 connector (not populated)
  • +5V input power supply, noise immune design
  • 4 mounting holes
  • PCB dimensions: (4000 x 3200) mils ~ (101.6 x 81.28) mm

DOCUMENTS

HARDWARE

GitHub OLINUXINO Project location - source files, documentation, examples
