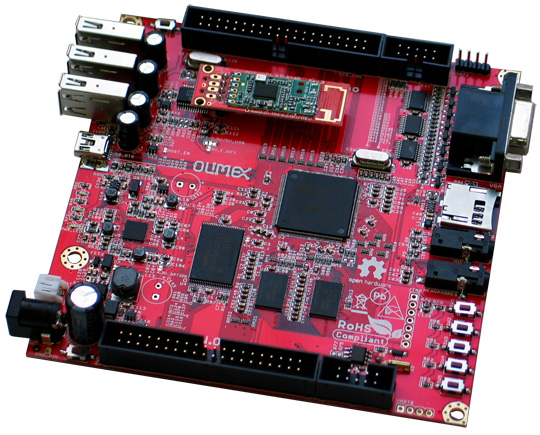

A13-OLinuXino-WIFI

A13-OLinuXino-WIFI - Open Source Hardware Board
A13-OLinuXino-WIFI - Open Source Hardware Board A13-OLinuXino-WIFI - Open Source Hardware Board
Open Source Hardware Embedded ARM Linux Single board computer with ALLWINNER A13 CORTEX-A8 @1000 Mhz
Price55.00 EUR
10 - 49 pcs49.50 EUR
50 - 10000 pcs44.00 EUR
In stock

A13-OLinuXino is a low-cost single-board Linux computer in a very compact nano-ITX form. It uses the very first Cortex A8 processor available in the eLQFP176 package, produced by Allwinner Technology Inc A13.

FEATURES

  • A13 Cortex A8 processor at 1GHz, 3D Mali400 GPU
  • 512 MB RAM (2 x 256Mbit x 8)
  • 6-16VDC input power supply, noise immune design
  • 4GB NAND flash
  • 3 + 1 USB hosts, 3 available for users 1 for WIFI RTL8188CU 802.11n 150Mbit module on-board
  • 1 USB OTG which can power the board
  • Battery option and connector
  • Android OS ready to use in the NAND memory
  • SD-card connector for booting optional Linux image
  • VGA video output
  • LCD signals are availabile on the connector so you still can use LCD if you diasble the VGA/HDMI
  • Audio Output
  • Microphone Input
  • 4 Mount holes
  • RTC PCF8536 on board for real time clock and alarms
  • 5 Keys on board for android navigation
  • UEXT connector for connecting addtional UEXT modules like Zigbee, Bluetooth, Relays, etc
  • GPIO connector with 68/74 pins and these signals:
    • 17 for adding another NAND flash;
    • 22 for connecting LCDs;
    • 20+4 including 8 GPIOs which can be input, output, interrupt sources;
    • 3x I2C;
    • 2x UARTs;
    • SDIO2 for connecting SD cards and modules;
    • 5 system pins: +5V, +3.3V, GND, RESET, NMI
  • Dimensions: 120 x 120 mm (4.7x4.7'')
  • Optional low-cost 7" LCD with touchscreen

SOFTWARE

COMMUNITY

FAQ

  • What software is available for the board?
  • The board comes with Android. The Linux development changes very rapidly. So far we have reports for a number of Linux distributions working properly with the board, please visit the WIKI and the GitHub pages of A13-OLinuXino-MICRO to find suitable distributions;also you might want to look in the forum for additional help.
  • I bought A13-LCDxx but when I connect it to the A13-OLinuXino I receive no image on the display. What do I do wrong?
  • The default A13-OLinuXino image is set for a VGA display and 800x600 resolution. To use a LCD with the A13-OLinuXino you need to upload a new image with the appropriate settings. The download links for the images may be found in the wiki article for A13-OLinuXino: https://www.olimex.com/wiki/A13-OLinuXino
  • What is the operating temperature range of A13-OLinuXino-WIFI?
  • The board works in the commercial temeprature range 0+70C
  • Can I buy A13 chips from you? What is the price?
  • Yes, you can. Note that A13 requires power managment IC AXP209 to operate correctly. That is why we are about to sell pairs A13+AXP209. The prices are as follows:
    • 1+ pcs EUR 20.00/pair;
    • 100+ pcs EUR 13.00/pair;
    • 1000+ pcs EUR 10.25/pair;
    • 10 000+ pcs EUR 7.80/pair;
    • 100 000+ pcs EUR 5.35/pair.
