NXP iMX8

NXP iMX8

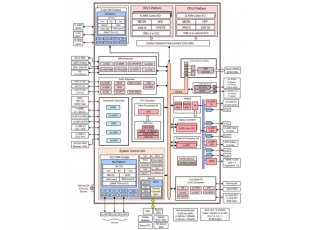

iMX8 Quad Max is Octa Core High Performance SOC with Dual Core Cortex-A72 Quad Core Cortex-A53 and Dual Core Cortex-M4F
iMX8QuadMax is the most powerful line of SOC from NXP iMX8 line.
Primary targeting Automotive and Infotainment
NXP iMX8QuadMax Octa Core SOC Linux Board

NXP iMX8QuadMax Octa Core SOC Linux Board


999.00 EUR
Out of stock

FEATURES

  • Dual Core Cortex-A72 @1.6Ghz
  • Quad Core Cortex-A53 @1.2GHz
  • Dual Core CortexM4F @268Mhz
  • 64-bit LPDDR4 @1600 MHz
  • GPU 16× Vec4 shaders with 64 execution units
  • VPU H.265 decode (4Kp60)
  • 2× H.264 encode (1080p30)
  • HDMI Rx
  • HDMI Tx 4K
  • 2x LVDS
  • 2x MIPI DSI
  • 2xMIPI CSI
  • 1× PCIe (2-lanes).
  • USB3.0
  • 2x USB2.0
  • SATA3.0
  • 2× 1Gb Ethernet
  • 3× CAN/CAN-FD

DOCUMENTS

SOFTWARE

  • NXP Linux 4.4
  • Andorid 10
