ESP32-POE-ISO

ESP32-POE-ISO IoT development board with 100Mb Ethernet, Power over Ethernet, WiFi, BLE, programmer

https://www.olimex.com/Products/IoT/ESP32/ESP32-POE-ISO/open-source-hardware

Select Product Variant

ESP32-POE-ISO
ESP32-POE-ISO-16MB
ESP32-POE-ISO-16MB-IND
ESP32-POE-ISO-EA
ESP32-POE-ISO-EA-16MB
ESP32-POE-ISO-EA-IND
ESP32-POE-ISO-IND
ESP32-POE-ISO-WROVER
ESP32-POE-ISO-WROVER-EA

Price	24.95 EUR
10 - 49 pcs	22.46 EUR
50 - 10000 pcs	19.96 EUR

ESP32-POE-ISO is OSHW certified Open Source Hardware with UID BG000021

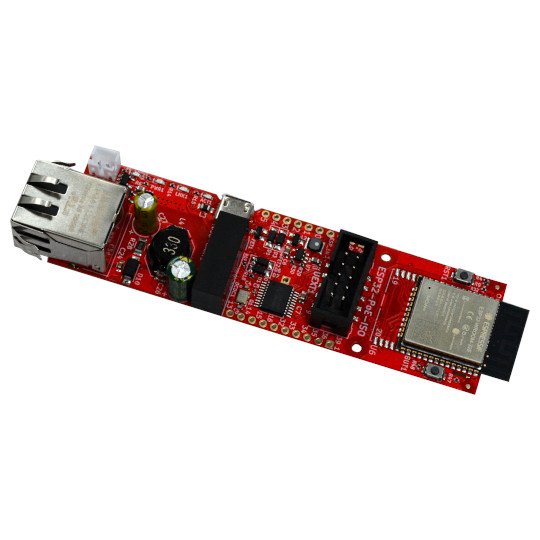

ESP32-PoE-ISO is an ESP32-powered WIFI/BLE/Ethernet development board with Power-Over-Ethernet feature. ESP32-POE-ISO has 3000VDC galvanic insulation from the Ethernet powering. It is the perfect addition to any project that requires connectivity.

The PoE is currently handled by TPS2375PW chip that is IEEE 802.3-compliant, including pre-standard (legacy) PoE support. The PoE powering requires at least 37V DC to operate successfully. The board takes power from the Ethernet cable and can be expanded with sensors and more. Perfect solution for Internet-of-Things projects.

ESP32-POE-ISO-EA has ESP32-WROOM-32UE module with U.FL connector and external antenna attached, which allow mounting in metal box. All "-EA" variants have antenna included!

ESP32-POE-ISO and ESP32-POE-ISO-EA operate in the commercial temperature range 0-70C

ESP32-POE-ISO-IND and ESP32-POE-ISO-EA-IND are functionally identical, but use components rated for industrial temperature operation -40+85C

ESP32-POE-ISO-16MB and ESP32-POE-ISO-EA-16MB are with ESP32-WROOM with 16MB Flash.

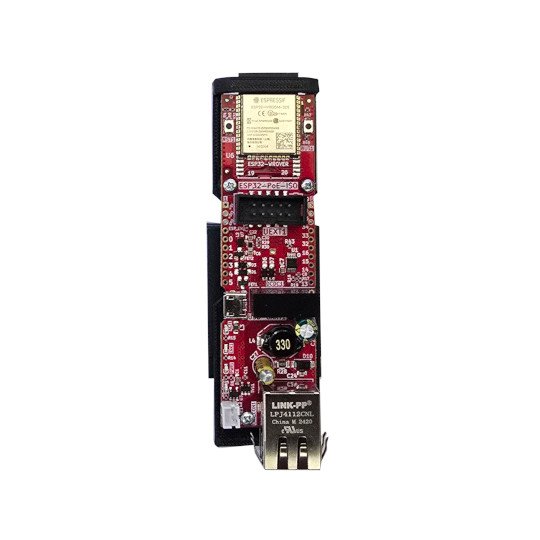

ESP32-POE-ISO-WROVER comes with ESP32-WROVER-E with 4MB flash and 8MB PSRAM, while ESP32-POE-WROVER-EA uses ESP32-WROVER-IE (again with 4MB flash and 8MB PSRAM). Notice that WROVER module requires two extra pins for the PSRAM - some software changes related to Ethernet and I2C might be required.

FEATURES

ESP32 module with WiFi and bluetooth (exact module depends on variant)
High reliable industrial grade -40+85C available (-IND)
CE-RED and LVD certification
Original design by OLIMEX Ltd
Low power design - 200uA consumption in deep sleep
Ethernet 100Mb interface with IEEE 802.3af PoE support
3000VDC galvanic insulation between the PoE Ethernet part and board's power supply circuit
Micro USB connector for ESP32 programming
MicroSD card working in 1 bit mode (3 more GPIOs)
LiPo battery charger with LiPo battery connector
Battery level monitor pin on ADC
External power supply detection pin on ADC
DC-DC 2W 5V/400mA
UEXT connector
User button
Reset button
Two extension connectors, 0.1" step spaced at 1"
PCB dimensions: (98 x 28)mm ~ (3.8 x 1)"
