ESP32-S2

ESP32-S2
ESP32-S2 WiFi Low Power SOC from Espressif development boards and tools
ESP32-S2 is Low Power Single Core WiFi Microcontroller with 43 programmable GPIOs, USB-OTG, LCD interface, camera interface, SPI, I2S, UART, ADC, DAC and touch button capability.

Compared to ESP32 it has no BT and Ethernet connectivity and is single core, so it may be seen as improved version of ESP8266.

ESP32-S2 IoT developement board with WiFi, USB programmer, RGB LED, LiPo charger, GPIOs

ESP32-S2 IoT developement board with WiFi, USB programmer, RGB LED, LiPo charger, GPIOs


  • ESP32-S2-DevKit-Lipo
  • ESP32-S2-DevKit-Lipo-EA
  • ESP32-S2-WROVER-DevKit-Lipo
  • ESP32-S2-WROVER-DevKit-Lipo-EA
9.95 EUR
In Stock

ESP32-S2 development board with USB host and device functionality USB-OTG

ESP32-S2 development board with USB host and device functionality USB-OTG


  • ESP32-S2-DevKit-Lipo-USB
  • ESP32-S2-DevKit-Lipo-USB-EA
  • ESP32-S2-WROVER-DevKit-Lipo-USB
  • ESP32-S2-WROVER-DevKit-LiPo-USB-EA
7.95 EUR
In Stock

ESP32-S2-Kaluga-1 multimedia development kit

ESP32-S2-Kaluga-1 multimedia development kit

45.00 EUR
In Stock

Obsolete

ESP32-S2-Saola-1R development board with ESP32-S2-WROVER module

ESP32-S2-Saola-1R development board with ESP32-S2-WROVER module

This item is OBSOLETE

N/AEUR

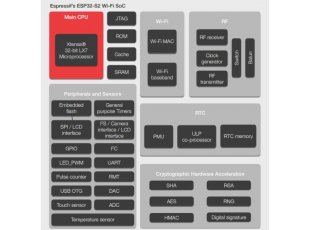

FEATURES

  • Xtensa® 32-bit LX7 CPU 240 MHz
  • 320 KB SRAM, 128KB ROM, 16 KB SRAM in RTC
  • WiFi 1T1R 150Mbps
  • 43 programmable GPIOs
  • SPI x4
  • I2S x1
  • UART x2
  • I2C x2
  • LED_PWM x8
  • LCD interface
  • DVP 8/16 Camera interface
  • ADC x2 12 bit up to 20 channels
  • DAC x2 8 bit
  • touch sensor x14
  • temperature sensor
  • USB On-The-Go (OTG)
  • Integrated Crypto accelerators for AES, SHA and RSA
  • RNG, HMAC and Digital Signature modules
  • Flash encryption and secure boot signature verification
