A13-OLinuXino-WIFI
Open Source Hardware Embedded ARM Linux Single board computer with ALLWINNER A13 CORTEX-A8 @1000 Mhz
| Price | 55.00 EUR |
|---|---|
| 10 - 49 pcs | 49.50 EUR |
| 50 - 10000 pcs | 44.00 EUR |
A13-OLinuXino is a low-cost single-board Linux computer in a very compact nano-ITX form. It uses the very first Cortex A8 processor available in the eLQFP176 package, produced by Allwinner Technology Inc A13.
FEATURES
- A13 Cortex A8 processor at 1GHz, 3D Mali400 GPU
- 512 MB RAM (2 x 256Mbit x 8)
- 6-16VDC input power supply, noise immune design
- 4GB NAND flash
- 3 + 1 USB hosts, 3 available for users 1 for WIFI RTL8188CU 802.11n 150Mbit module on-board
- 1 USB OTG which can power the board
- Battery option and connector
- SD-card connector for booting optional Linux image
- VGA video output
- LCD signals are availabile on the connector so you still can use LCD if you diasble the VGA/HDMI
- Audio output
- Microphone Input
- 4 Mount holes
- RTC PCF8563 on board for real time clock and alarms
- 5 Keys on board for android navigation
- UEXT connector for attaching expansion boards (sensors, relays, etc)
- GPIO connector with 68/74 pins and these signals:
- 17 for adding another NAND flash;
- 22 for connecting LCDs;
- 20+4 including 8 GPIOs which can be input, output, interrupt sources;
- 3x I2C;
- 2x UARTs;
- SDIO2 for connecting SD cards and modules;
- 5 system pins: +5V, +3.3V, GND, RESET, NMI
- Dimensions: (120x120)mm ~ (4.7x4.7)''
DOCUMENTS
HARDWARE
SOFTWARE
- GitHub OLINUXINO Project
- A1x Linux
- Image links, instructions, demo software, customer projects and more might be found at the wiki page: A13-OLinuXino-WIFI article
COMMUNITY
- OLinuXino forum for discussions and community support
- Freenode #olimex irc channel for OLinuXino development discussions
FAQ
- What software is available for the board?
- The software images that we provide and maintain are: Debian Linux for microSD card; Android for microSD card; Android for NAND memory. The board is able to run a lot of other custom-made Linux distributions. Please visit the WIKI and the GitHub pages of A13-OLinuXino to find latest images we officially provide and also links to 3rd party Linux images.
- There is no Android on the NAND memory! The boards with NAND used to have Android already loaded! What happened?
- We no longer load Android on the NAND memory of the boards. You can upload Android following the FAQ section of the wiki article of your board.

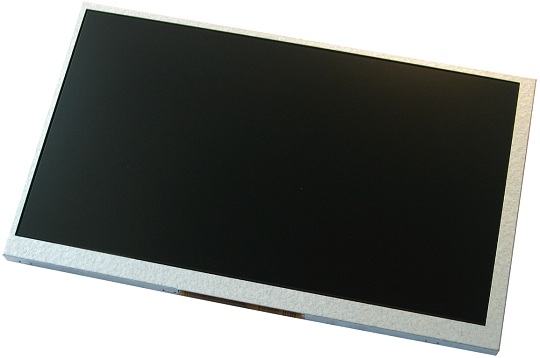

- I bought LCD-OLinuXino-xxx but when I connect it to the A13-OLinuXino I receive no image on the display. What do I do wrong?
- The default A13-OLinuXino image is set for a VGA display and 800x600 resolution. To use a LCD with the A13-OLinuXino you need need to start the shell script (./change_display...) in the default Debian image.
You can also upload a new image with the appropriate settings. The download links for the images may be found in the wiki article for A13-OLinuXino: https://www.olimex.com/wiki/A13-OLinuXino
- I bought LCD-OLinuXino-xxx and the SD card that has a Linux image written on it. However the resolution I see on my VGA/LCD is not correct. What am I missing?
- You can run the script or change the configuration file in the main partition of the SD card. Detailed information and download locations for the script files might be found at: https://www.olimex.com/wiki/index.php?title=Configuration_of_hardware_in_the_debian_image
- What is the operating temperature range of A13-OLinuXino-WIFI?
- The board works in the commercial temeprature range 0+70C
- How long this board will be available?
- This board will be available forever
