System on chip module, with RK3188 Quad Core Cortex-A9 processor

Select Product Variant

  • RK3188-SOM
  • RK3188-SOM-4GB
Price57.00 EUR
10 - 49 pcs51.30 EUR
50 - 99 pcs45.60 EUR
100 - 999 pcs42.75 EUR
1000 - 10000 pcs39.90 EUR
In Stock

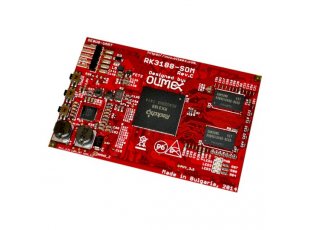

RK3188-SOM is System on Chip module, which contains of RK3188 Quad Core Cortex-A9 processor, Power managment Unit AC8846, 1GB DDR3 memory. All RK3188 signals are available on 5 connectors x 40 pin with 0.05" step. RK3188-SOM have UART console connector and SD-card.

FEATURES

  • Rockchip RK3188 quad core Cortex-A9 processor, each core typically running at 1.6GHz
  • 1GB DDR3 memory
  • 4GB Flash for RK3188-SOM-4GB version
  • ACT8846QM460 PMU IC
  • MicroSD card
  • UART debug pins exposed
  • 3 × user LEDs
  • Power LED
  • 3 × buttons – POWER, RESET, RECOVERY
  • 5 GPIO connectors × 40 pin at 0.05" step

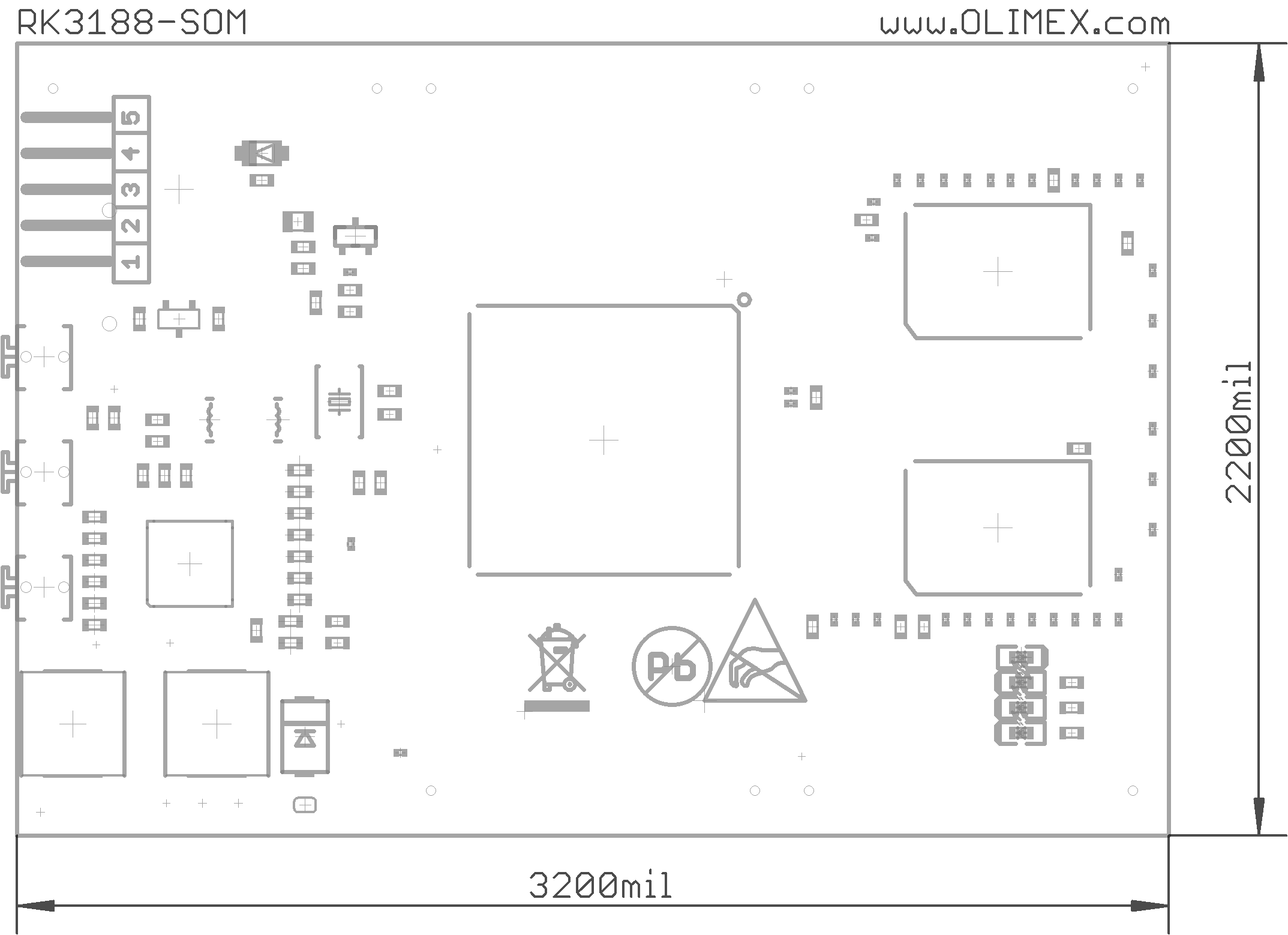

  • Dimensions: (3.2×1.8)'' ~ (81×56)mm

DOCUMENTS

HARDWARE

SOFTWARE

COMMUNITY

FAQ

  • How do I remove the RK3188-SOM main board from the RK3188-SOM-EVB peripheral board? It looks like a very tight fit.
  • Try to use a thin and long object as a lever. Carefully place it on a spot that won't damage other components. Push each side slowly up before attempting to pull out the RK3188-SOM-4GB from the RK3188-SOM-EVB's connectors. Never try to remove the whole side in one go! Doing so would most likely damage the connectors and the male pins! Always try to symetrically push up the RK3188-SOM frm the EVB.
