ESP32-P4-PC

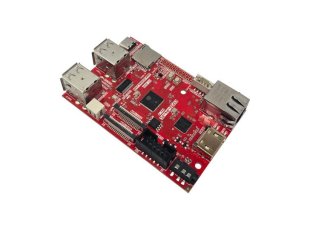

ESP32-P4-PC - Open Source Hardware Board
ESP32-P4-PC - Open Source Hardware Board ESP32-P4-PC - Open Source Hardware Board ESP32-P4-PC - Open Source Hardware Board ESP32-P4-PC - Open Source Hardware Board
ESP32-P4 small computer with 4 USB hosts, Ethernetm HDMI and LCD display, MIPI Camera, SD-card, USB-C power supply, POE option, LiPo battery UPS, Audio output
Price24.95 EUR
In Stock

FEATURES

  • Espressif ESP32-P4NRW32 module:
    - Dual core 400Mhz RISC-V
    - 768KB RAM
    - 32MB PSRAM
  • SPI Flash 16MB
  • USB JTAG for programming and debugging
  • Ethernet MACPHY and connector with POE option via extension
  • Camera CSI interface
  • LCD Display DSI interface
  • HDMI converter and output
  • Audio output 3.5mm jack
  • MicroSD card
  • Boot and Reset buttons
  • UEXT connector
  • All free GPIOs available on 0.1″ 2.54 mm 20 pin connector
  • Three mounting holes 3.3mm diameter
  • Dimensions: (90 x 60)mm

DOCUMENTS

  • ESP32-P4-PC user manual
  • ESP32-P4-PC EU declaration of conformity
  • ESP32-P4-PC UKCA declaration of conformity

HARDWARE

  • ESP32-P4-PC schematic in PDF format
  • ESP32-P4-PC KiCAD source repository

SOFTWARE

  • ESP32-P4-PC demo code
