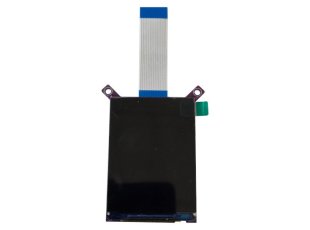

MIPI-LCD2.8-640x480
MIPI IPS LCD 2.8" 640x480 pixels
| Price | 24.95 EUR |
|---|
MIPI-LCD2.8 display revisions: V1 requires RGB565 output and panel reset/backlight control through the onboard PCA9536 I²C expander. V2 uses RGB888 output and needs no expander control. Check the demos and use the matching V1 or V2 software configuration for your display revision.
FEATURES
- MIPI DSI single lane
- IPS 286 PPI
- Controller ST7701S with additional controller
- Display size 2.8"
- Resolution 640x480 pixels
- Brightness 300cd/m²
- FPC 15 pin cable compatible with RPi3/4
- Dimensions: 65x46.2 mm
DOCUMENTS
- MIPI-LCD2.8-640x480 user manual
- MIPI-LCD2.8-640x480 EU Declaration of conformity
- MIPI-LCD2.8-640x480 UKCA Declaration of conformity
