STM32-H405 STM32-H405 STM32-H405
Header board with STM32F405RG ARM CORTEX M4 1024KB Flash 168 MHz 192KB SRAM

Select Product Variant

  • GD32-H405
  • STM32-H405
Price11.95 EUR
10 - 49 pcs11.35 EUR
50 - 10000 pcs10.76 EUR
In Stock

STM32-H405 is a general-purpose development board that allows the evaluation of STM32F405.

The STM32F405RG ARM Cortex-M4 processor is part of the latest generation of ARM processors for embedded systems. It has been developed to provide a low-cost platform that meets the needs of a MCU with reduced pin count and low-power consumption, while delivering high computational performance and an advanced system response to interrupts. The ARM Cortex-M4 32-bit RISC processor features exceptional code-efficiency, delivering the high-performance expected from an ARM core in the memory size usually associated with 8- and 16-bit devices.

STM32-H405 is a minimal start-up board for evaluating the new ST Cortex-M4 microcontrollers. The board has a standard 20-pin JTAG/SWD connector. The board features two headers with all microcontroller signals near it, giving the customer an easy way to implement his own schematics and add-ons. The STM32-H405 board is compatible with all the tools and software used in typical ARM development environment.

New version with GD32F405RGT6 pin to pin compatible MCU is available. Notice that software and bianries made for STM32-H405 might not work without re-building with GD32-H405. Your software should support GD32F405 and you should rebuild your project with GD32F405 set as target.


  • MCU: STM32F405RG or GD32F405RGT6 ARM Cortex M4 in LQFP64 pacakge that operates up to 168 Mhz; with 1024KB flash memory; (192+4)kB SRAM; 2 x USB; 2 x CAN; 2 x I2C; 3 x 12-bit ADC x 16 channels; 2 x 12-bit DAC; 2 x UART; 3 x SPI; 17 timers; with up to 51 GPIOs
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • USB connector
  • User button
  • RESET button
  • Status LED
  • Power supply LED
  • On-board voltage regulator 3.3V with up to 800mA current
  • Single power supply: takes power from USB port or extension connector pin
  • 8 Mhz crystal oscillator
  • 32768 Hz crystal and RTC backup battery connector
  • Extension headers with 0.1" step for all uC ports
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print

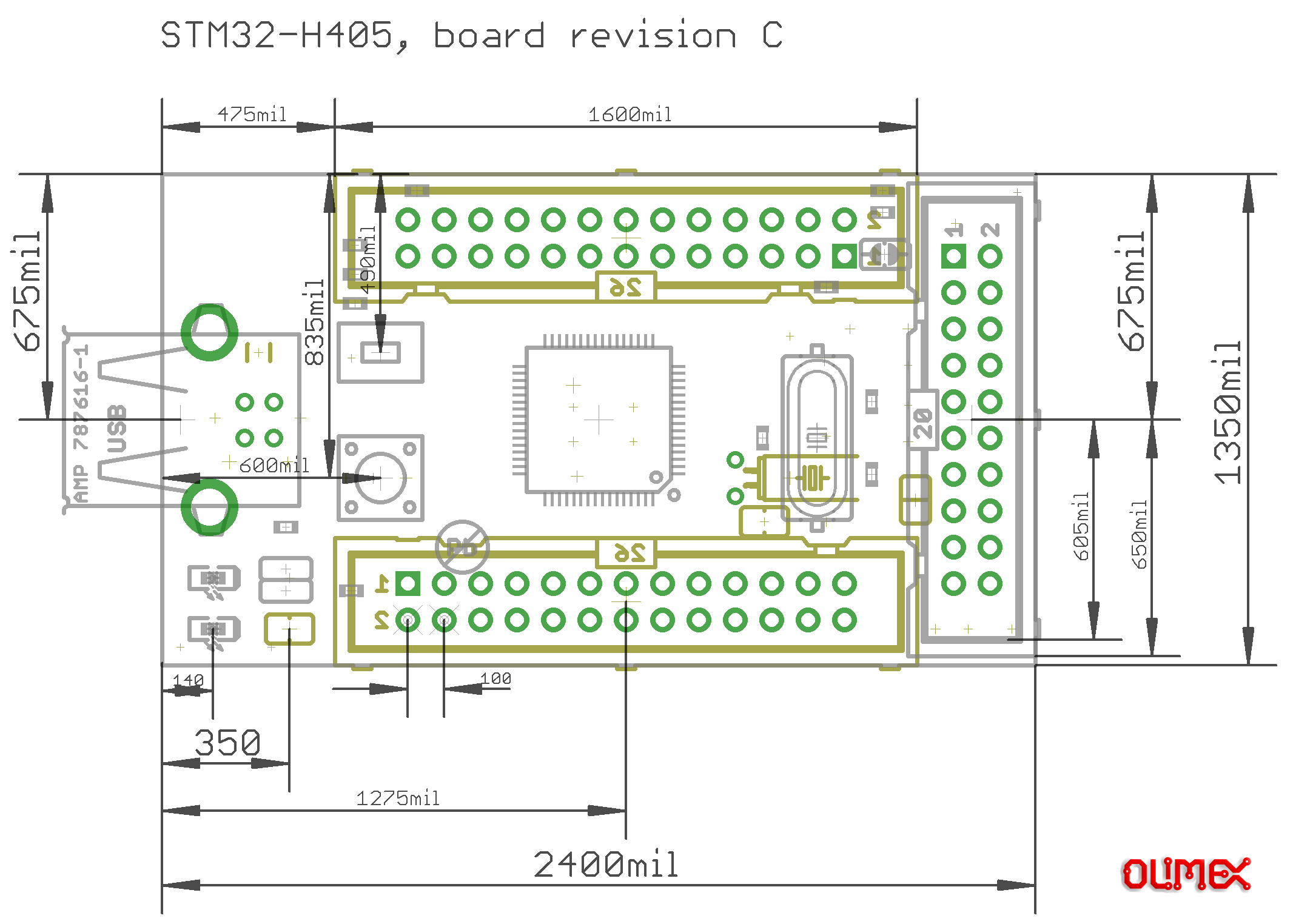

  • Dimensions: (61 x 34)mm ~ (2.4 x 1.3)"
  • Distance between the ext connectors: 25.4mm ~ 1"
