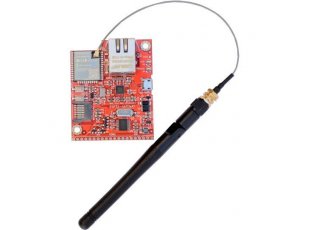

ESP32-GATEWAY - Open Source Hardware Board
ESP32-GATEWAY development board with WiFi BLE, Ethernet, micro SD card, and GPIO

Select Product Variant

Price20.95 EUR
10 - 49 pcs18.86 EUR
50 - 10000 pcs16.76 EUR
In Stock
ESP32-GATEWAY is OSHW certified Open Source Hardware with UID BG000012

This is the ultimate IoT board with wired 100Mb Ethernet Interface, Bluetooth LE, and WiFi.

ESP32-GATEWAY and ESP32-GATEWAY-EA should be used in the commercial temperature range 0-70C
ESP32-GATEWAY-IND and ESP32-GATEWAY-EA-IND are functionally identical, but using components rated to work in the industrial temperature grade -40+85C


  • ESP32-WROOM32 module
  • MicroUSB connector
  • CH340 USB serial converter
  • Built-in programmer for Arduino and ESP-IDF
  • WiFi, BLE connectivity
  • Ethernet 100Mb interface
  • MicroSD card
  • GPIO 20 pin connector with all ESP32 ports

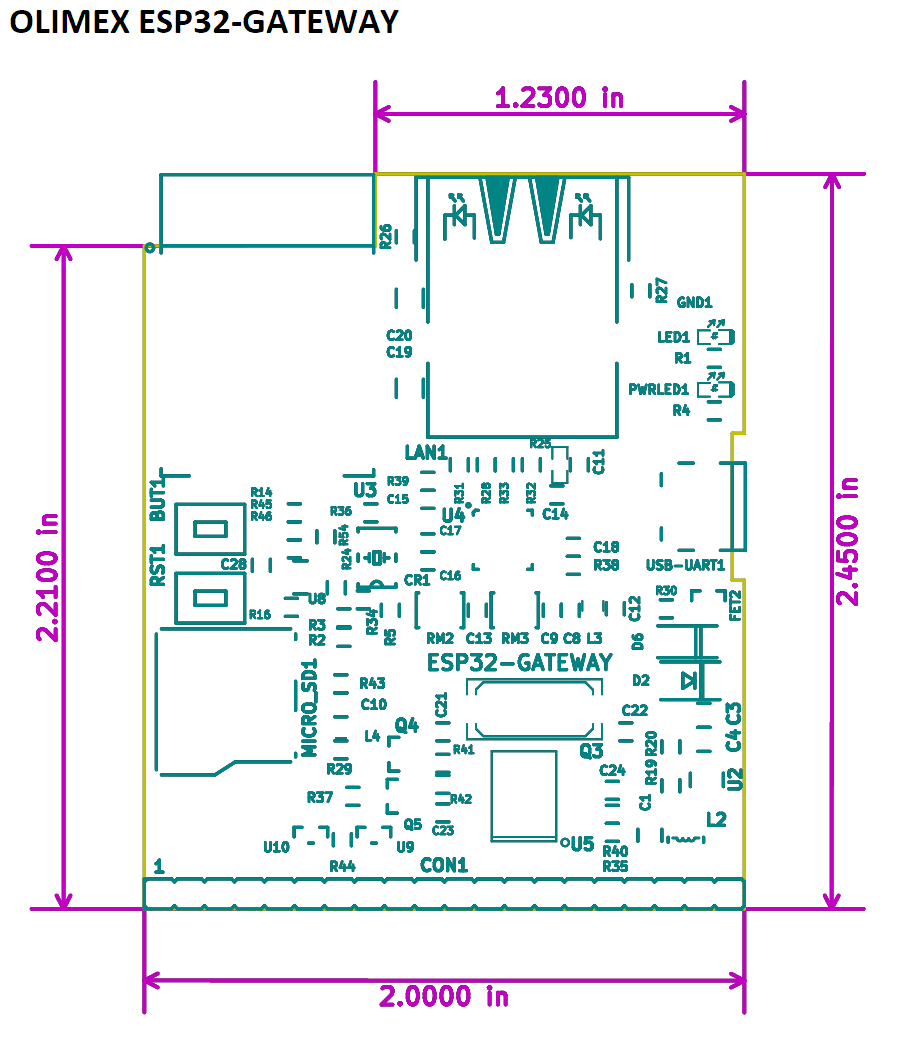

  • Dimensions: (50 x 62)mm ~ (1.95 x 2.45)"
