ESP32-S2-DevKit-Lipo

ESP32-S2-DevKit-Lipo - Open Source Hardware Board
ESP32-S2 IoT developement board with WiFi, USB programmer, RGB LED, LiPo charger, GPIOs

Select Product Variant

  • ESP32-S2-DevKit-Lipo
  • ESP32-S2-DevKit-Lipo-EA
  • ESP32-S2-WROVER-DevKit-Lipo
  • ESP32-S2-WROVER-DevKit-Lipo-EA
Price9.95 EUR
10 - 49 pcs8.96 EUR
50 - 10000 pcs7.96 EUR
In Stock
ESP32-S2-DevKit-Lipo is OSHW certified Open Source Hardware with UID BG0000106

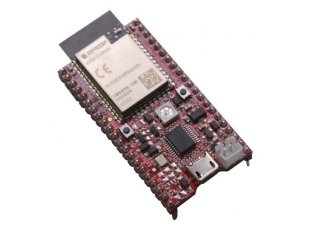

ESP32-S2-DevKit-Lipo is a development board with CH340 programmer, with ultra low power, capable to work on LiPo battery. This board is based on ESP32-S2-WROOM module and has 4MB of Flash.

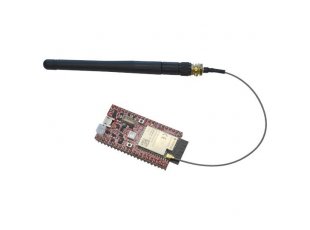

ESP32-S2-WROVER-DevKit-Lipo is same board with ESP32-S2-WROVER module which additionally has 2MB of PSRAM.

FEATURES

  • ESP32-S2-WROOM or ESP32-S2-WROVER module with Xtensa® 32-bit LX7 CPU 240 MHz
  • 320 KB SRAM, 128KB ROM, 16 KB SRAM in RTC
  • 4MB Flash
  • 2MB PSRAM in ESP32-S2-WROVER-DevKit-Lipo
  • WiFi 1T1R 150Mbps
  • LiPo battery charger
  • Battery monitorin
  • External power sense
  • Low consumption
  • RGB LED
  • CH340T programmer works with Espressif SDK, Arduino, Platform IO
  • Reset button
  • User button

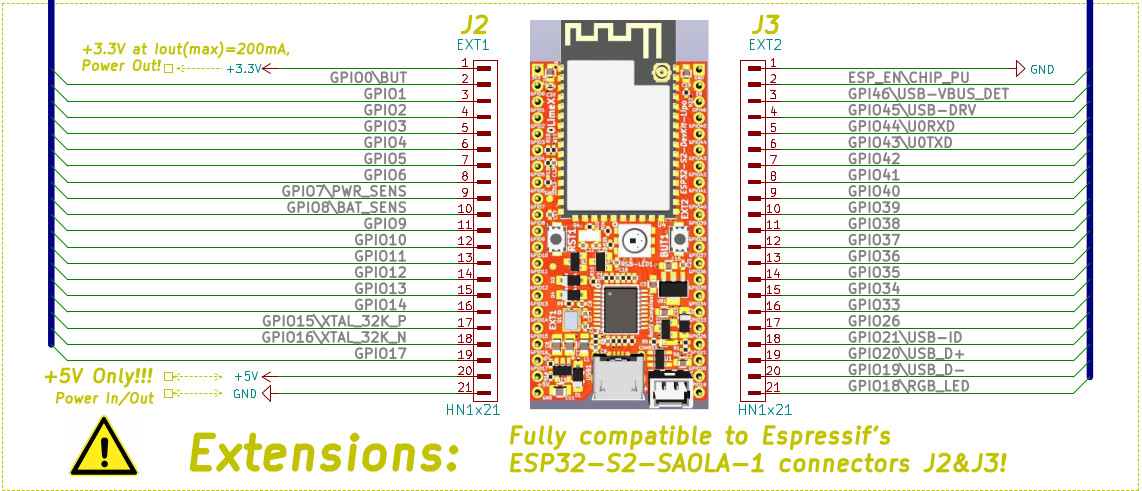

  • Pin-to-pin compatible with ESP32-S2-SAOLA-1
