ESP32-C5-DevKit-Lipo

ESP32-C5-DevKit-Lipo - Open Source Hardware Board
ESP32-C5-DevKit-Lipo - Open Source Hardware Board ESP32-C5-DevKit-Lipo - Open Source Hardware Board ESP32-C5-DevKit-Lipo - Open Source Hardware Board
Dual band 2.4Ghz and 5Ghz WiFi 6, Bluetooth 5 LE, Zigbee, Thread, Matter development board UEXT, USB programming, USB JTAG and LiPo battery UPS
Price12.95 EUR
In Stock

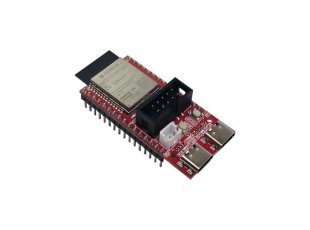

The ESP32-C5-Devkit-Lipo is an evaluation board built around the ESP32-C5-WROOM-N8R4 module from Espressif, designed to bring dual-band wireless connectivity, ample memory, and robust control features into one compact, breadboard friendly versatile package.

FEATURES

  • ESP32-C5-WROOM-N8R4 module:
    - 32 bit RISC-V processor 240Mhz
    - Dual-Band Wi-Fi (2.4 GHz + 5 GHz)
    - Bluetooth 5, Zigbee, Thread and Matter
    - 8 MB SPI flash + 4 MB PSRAM memory
  • USB-C for CH340x USB-serial adapter (power and serial programming)
  • USB-C for native USB (power and JTAG debug)
  • UEXT connector
  • User/boot button
  • Reset button
  • User LED
  • Two extension headers with all GPIOs
  • Breadboard-friendly header spacing - 0.9" (22.86 mm)
  • Li-Po UPS battery with charger
  • Battery charger status LED
  • External power sense and battery measurement option
  • Two mounting holes
  • Compact design size with dimensions 53x25 mm
