MOD-IR-TEMP

MOD-IR-TEMP - Open Source Hardware Board
MOD-IR-TEMP - Open Source Hardware Board MOD-IR-TEMP - Open Source Hardware Board MOD-IR-TEMP - Open Source Hardware Board
Infra Red high precision non-contact temperature measurement sensor module for UEXT connector or breadboard
Price9.95 EUR
10 - 49 pcs8.96 EUR
50 - 10000 pcs7.96 EUR
In stock

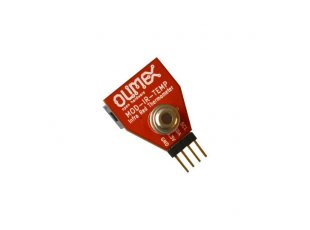

MOD-IR-TEMP is an infra red thermometer based on MLX90614BAA IC. MLX90614BAA is factory calibrated in wide temperature range:

  • -40 to 125 ̊C for sensor temperature and

  • -70 to 380 ̊C for object temperature.

VERY IMPORTANT: MOD-IR-TEMP works at 3.3V! Please set your Arduino board to 3.3V operation or you will damage the module.

FEATURES

  • Non contact temperature measurement
  • High precision with 0.02C resolution
  • High accuracy of 0.5°C over temp range 0 to 50°C
  • 3V operation
  • I2C interface
  • UEXT connector
  • Breadboard connector
  • includes IDC 10 pin ribbon cable for UEXT boards
  • Dimensions: 22 x 35 mm

SOFTWARE
