ESP32-C3-DevKit-Lipo

ESP32-C3-DevKit-Lipo - Open Source Hardware Board
ESP32-C3-DevKit-Lipo - Open Source Hardware Board ESP32-C3-DevKit-Lipo - Open Source Hardware Board ESP32-C3-DevKit-Lipo - Open Source Hardware Board
ESP32-C3-DevKit-Lipo RISC-V development board with JTAG WIFI BT5 USB
Price4.95 EUR
In Stock
ESP32-C3-DevKit-Lipo is OSHW certified Open Source Hardware with UID BG000083

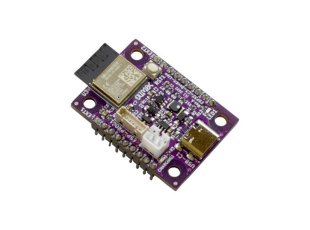

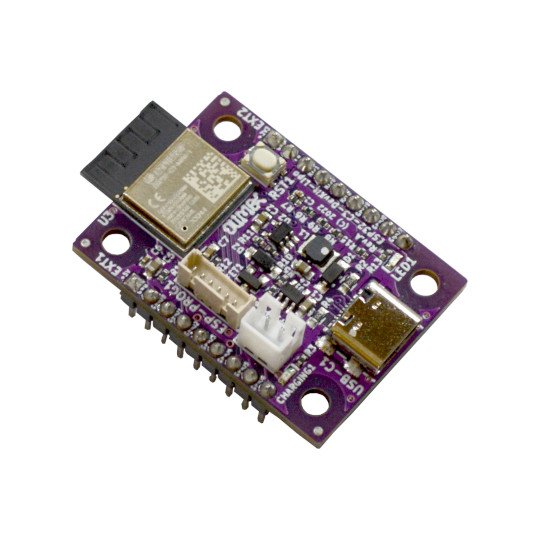

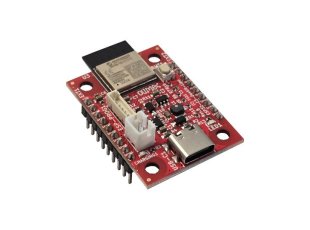

ESP32-C3-DevKit-Lipo is an entry-level RISC-V board with USB, JTAG, WiFi, Bluetooth 5, and a Li-Po charger.

FEATURES

  • RISC-V single core processor runninig on 160 Mhz
  • 384 KB ROM, 400 KB SRAM, 8 KB SRAM in RTC
  • 4 MB embedded flash
  • 2.4 GHz WiFi (802.11 b/g/n) 1T1R up to 150 Mbps
  • Bluetooth 5
  • 15 GPIOs
  • On-board antenna
  • Built-in Li-Po battery charger with STATUS LED, for handheld operations
  • Li-Po battery connector for Olimex LiPo batteries
  • Reset button
  • STATUS LED
  • ICSP programming connector for rescue with ESP-PROG-C
  • 4 mount holes
  • USB-C connector for Debugging and Programming
  • EXT1, EXT2 headers with all signals and power supply
