MOD-BME280

MOD-BME280 - Open Source Hardware Board
MOD-BME280 - Open Source Hardware Board MOD-BME280 - Open Source Hardware Board MOD-BME280 - Open Source Hardware Board

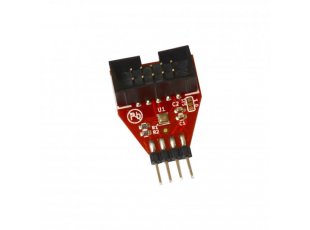

MOD-BME280 combined humidity, temperature and pressure precision sensor module
Price6.95 EUR
10 - 49 pcs6.26 EUR
50 - 10000 pcs5.56 EUR
In stock
MOD-BME280 is combined humidity, temperature and pressure sensor module based on Bosch BME280 sensor. It has two digital interfaces: I2C (up to 3.4 MHz) and SPI (3/4 wire, up to 10 MHz). Typical use is: Home automation control, quality of working environment, control heating, venting, air conditioning (HVAC), elevator detection (change of air pressure), Vertical velocity indication (rise/sink speed).

IMPORTANT NOTICE: BME380 sensor works on 3.3V power supply, if you use it with Arduino set on 5V you will damage this sensor.

FEATURES

  • Operating voltage 3.3V
  • Temperature -40..+85C
  • Humidity 0...100 % Rh
  • Pressure 300...1100 hPa  (+9000m..-500m above sea level)
  • Humidity sensor Response time: 1 s
  • Humidity accuracy  ±3 % Rh
  • Pressure sensor RMS Noise 0.2 Pa, equiv. to 1.7 cm
  • Current consumption 1.8 μA @ 1 Hz humidity and temperature
  • Current consumption 2.8 μA @ 1 Hz pressure and temperature
  • Current consumption 3.6 μA @ 1 Hz humidity, pressure and temperature
  • 0.1 μA in sleep mode
  • dimensions 22 x 35 mm
