LPC-L2294-8MB

LPC-L2294-8MB
LPC-L2294-8MB LPC-L2294-8MB LPC-L2294-8MB

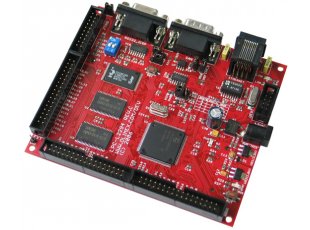

Development prototype board with 8MB SRAM, 4MB FLASH, CAN, RS232, ETHERNET, SD/MMC
Price145.95 EUR
10 - 49 pcs131.36 EUR
50 - 10000 pcs116.76 EUR
In stock

FEATURES

  • MCU: LPC2294 16/32 bit ARM7TDMI-S™t with 256K Bytes Program Flash, 16K Bytes RAM, EXTERNAL MEMORY BUS, RTC,4x 10 bit ADC 2.44 uS, 2x UARTs, 4x CAN, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • 8MB (2Mx32bit) 70 ns K1S321611 SRAM
  • 4MB (2Mx16bit) 70ns TE28F320C3BD70 C3 INTEL FLASH
  • Ethernet controller with CS8900A and RJ45 connector (16bit mode with interrupt)
  • RS232 port
  • UEXT connector
  • CAN drivers and connector
  • SD/MMC card connector
  • All LPC2294 port signals available on extension coonectors
  • RESET circuit with exterman control of Philips ISP utility via USB-RS232 virtual port
  • Jumpers for boot select from external memory
  • Jumpers for ISP/RUN mode
  • 1 user button
  • RESET button
  • Two on board voltage regulators 1.8V and 3.3V with up to 800mA current
  • FR-4, 1.5 mm, red soldermask, component print
  • Dimensions: 118 x 101 mm ( 4.65 x 3.97")
