LPC-L2294-1MB

LPC-L2294-1MB
LPC-L2294-1MB LPC-L2294-1MB LPC-L2294-1MB

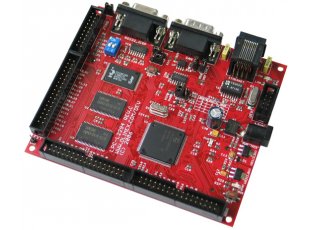

Development prototype board with 1MB SRAM, 4MB flash, CAN, RS232, ETHERNET, SD/MMC
Price115.95 EUR
10 - 49 pcs104.36 EUR
50 - 10000 pcs92.76 EUR
In stock

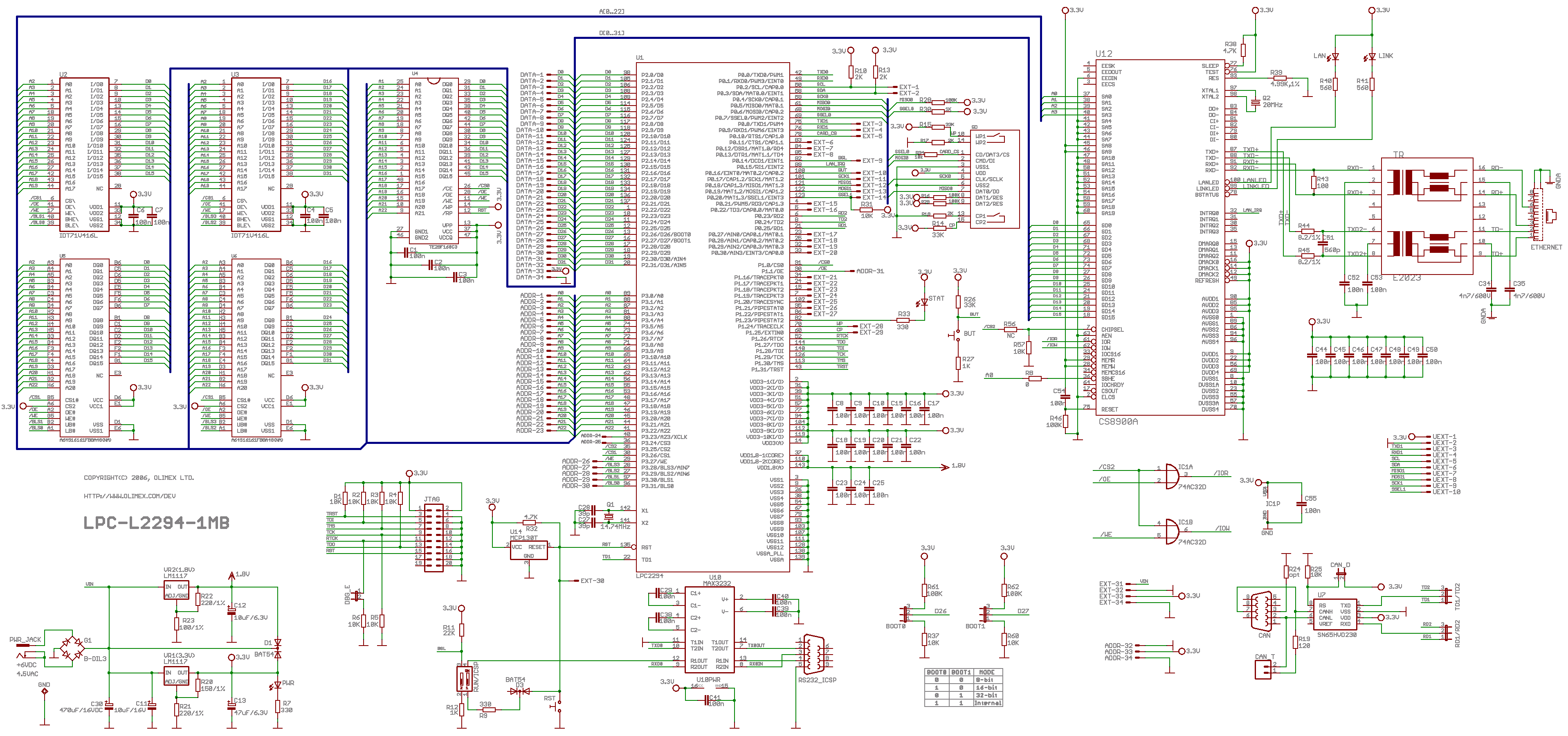

FEATURES

  • MCU: LPC2294 16/32 bit ARM7TDMI-S™t with 256K Bytes Program Flash, 16K Bytes RAM, EXTERNAL MEMORY BUS, RTC,4x 10 bit ADC 2.44 uS, 2x UARTs, 4x CAN, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • 1 MB (256K x 32 bit) fast 10 ns K6R4016V1D SRAM
  • 2MB (1MB x 16bit) 70ns TE28F160C3BD70 C3 INTEL FLASH
  • Ethernet controller with CS8900A and RJ45 connector (16bit mode with interrupt)
  • RS232 port
  • UEXT connector
  • CAN drivers and connector
  • SD/MMC card connector
  • All LPC2294 port signals available on extension coonectors
  • RESET circuit with exterman control of Philips ISP utility via USB-RS232 virtual port
  • Jumpers for boot select from external memory
  • Jumpers for ISP/RUN mode
  • 1 user button
  • RESET button
  • Two on board voltage regulators 1.8V and 3.3V with up to 800mA current
  • FR-4, 1.5 mm, red soldermask, component print
  • Dimensions: 118 x 101 mm ( 4.65 x 3.97")
