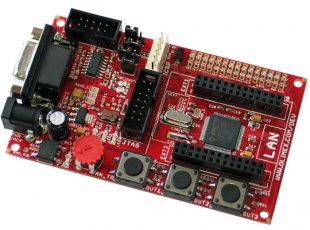

Web server with 32 bit PIC microcontrollers with PIC32MX460F512 and 100 MBit Ethernet interface
Price26.95 EUR
10 - 49 pcs24.26 EUR
50 - 10000 pcs21.56 EUR
In stock

Do not use the "programmer-to-go" button when there is no image on the OLIMEX PIC-KIT3 or MICROCHIP PIC-KIT3 because that might put your microcontroller in an irrecoverable state. We have tested the mentioned scenario and we can confirm it destroys PIC32 chips (using both our and the original Microchip PICKIT3). We don't take responsibility if you break your chip that way. For more info check the following: www.microchip.com/forums/m635420.aspx.


  • PIC32MX460F512 microcontroller
  • note to connect to Ethernet this board requires MOD-ENC624J600 which is bought separately!
  • JTAG connector
  • ICSP/ICD connector for programming / debugging with PIC-ICD2-POCKET.
  • Reset button
  • Reset Circuit
  • three User event buttons
  • three LEDs
  • UEXT connector
  • Analogue trimmer potentiometer
  • RS232 driver and connector
  • Complete web server and TCP-IP stack support as per Microchip's open source TCP-IP stack
  • Power plug-in jack for +5VDC power supply
  • Voltage regulator +3.3V and filtering capacitors
  • Extension header to connect to other boards
  • Dimensions 100x60 mm (3.9x2.4")
