MOD-ENC624J600

MOD-ENC624J600

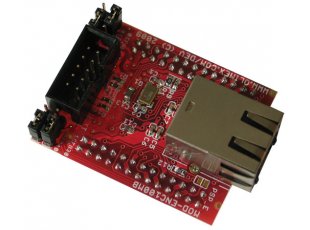

Development board with UEXT connector and 100 MBit ENC624J600 Ethernet controller
Price16.95 EUR
10 - 49 pcs15.26 EUR
50 - 10000 pcs13.56 EUR
In stock

FEATURES

  • MOD-ENC624J600 is the easiest way to add 100 Mbit ethernet connectivity to any of our boards with UEXT connector
  • ENC624J600 Ethernet controller with UEXT connector for easy connection to our other development boards with UEXT connector
  • LAN connector with build in transformer
  • Two status LEDs on LAN connector
  • SPI/PARALLEL port interface to add Ethernet interface to your microcontroller project
  • UEXT 10 pin interface on 0.1" row pins header
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, white silkscreen component print
  • Dimensions: 47x37 mm (1.85 x 1.45")

SOFTWARE
