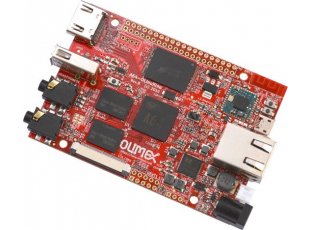

A64-OLinuXino

Embedded Linux Computer with Quad core 64 bit ARM SOC

https://www.olimex.com/Products/OLinuXino/A64/A64-OLinuXino-1G/open-source-hardware

A64-OLinuXino is OSHW certified Open Source Hardware with UID BG000042

Open source hardware board that runs Linux and Android. Entirely designed with open source software CAD tools.

There are six variants:

A64-OLinuXino-1G with 1GB RAM but NO flash and NO WiFi/BLE connectivity
A64-OLinuXino-1Ge16GW with 1GB RAM and 16GB extra eMMC flash and extra WiFi/BLE module
A64-OLinuXino-1Ge16GW-EA with 1GB RAM and 16GB extra eMMC flash and extra WiFi/BLE module + external antenna
A64-OLinuXino-1Ge4GW with 1GB RAM and 4GB extra eMMC flash and extra WiFi/BLE module
A64-OLinuXino-1Gs16M with 1GB RAM, no NAND or eMMC flash, no WiFi/BLE, extra 16MB SPI flash
A64-OLinuXino-2Ge8G-IND with 2GB RAM and 8GB extra flash but NO WiFi/BLE connectivity; with components that work in the industrial -40+85C temperature range

Allwinner A64 - 1.2 GHz Quad-Core ARM Cortex-A53 64-bit
Memory: 1GB or 2GB RAM DDR3L @ 672Mhz
0/4/16GB eMMC flash memory for storage and boot
MicroSD card connector
Debug: serial UART debug header with 0.1" pins
Wired connectivity: 10/100/1000Mbps GbE Ethernet
Wireless connectivity: popular on-board WIFI and bluetooth 4.0 BLE module with built-in antenna (only available in the A64-OLinuXino-1G4GW version)
Monitor output: HDMI output
Display output: LCD output on 40-pin ribbon cable connector and MIPI DSI with 20-pin ribbon connector
Audio: headphone output and microphone input with phone jacks (can be changed to Line-in and Line-out via jumpers)
External power: power jack for 5V exeternal power supply
Battery power option and built-in charger circuit: the board can be fully powered via 3.7 Li-Po battery
USB connectivity: USB-OTG support on microUSB connector; USB host on USB type A connector; USB HSIC signals available on 4-pin header drills @ 0.1" step
LEDs: power indication LED, battery charging status LED, user-programmable LED
GPIO expansion: provided 40-pin header drills @ 0.1" step with useful signals (like CSI camera interface and GPIOs)
UEXT expansion: provided 10-pin header drills @ 0.1" step for UEXT expansion
optional SPI Flash on SO8 connector
RTC battery expansion: pad provided for powering the RTC of AXP803
Buttons: UBOOT button; RESET button; POWER button
Four mounting holes
PCB dimensions: (90.0 x 62.5)mm ~ (3.5 x 2.5)"

---

What LCDs can I connect to A64-OLinuXino?
You can connect LCD-OLinuXino-7 and LCD-OLinuXino-10 LCDs, however the A64 chip has no support for resistive touch panels, so the touch screen will not be available. There are 7 and 10 inch LCDs with capacitive touch panels in our product range. To connect an LCD to A64-OLinuXino you need FPC-40-0.5-150 cable.

The LCD is not working.
Notice that there is multiplexing between the Ethernet and the LCD. In order to use the LCD you need to keep the Ethernet interface in reset by closing the PHYRST1 jumper (the PTH jumper near the main A64 chip). If that is already performed and the problem still remains maybe additional video configuration might be required - interrupt u-boot and type "olinuxino" to see options for manual video configurations.
