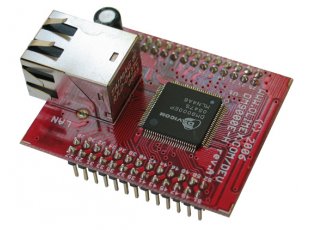

DM9000E 10/100 MBit Ethernet controller header board
Price19.95 EUR
10 - 49 pcs17.96 EUR
50 - 10000 pcs15.96 EUR
In stock

A low cost 10/100 Mbit Ethernet controller development board based on the DM9000EP with flexible options to be addressed with 8-16-32 bit data bus microcontrollers and support for MDI-X. The compact size of 50x40 mm and the 0.1” step connectors make this board perfect for prototyping.

FEATURES

  • DM9000E 10/100 Mbit Etherner controller
  • LAN connector with build in transformer
  • Two status LEDs on LAN connector
  • Supports 8-16-32 bit data bus, interrupts and polling
  • Two 2x26 0.1" step connectors
  • PCB: FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print

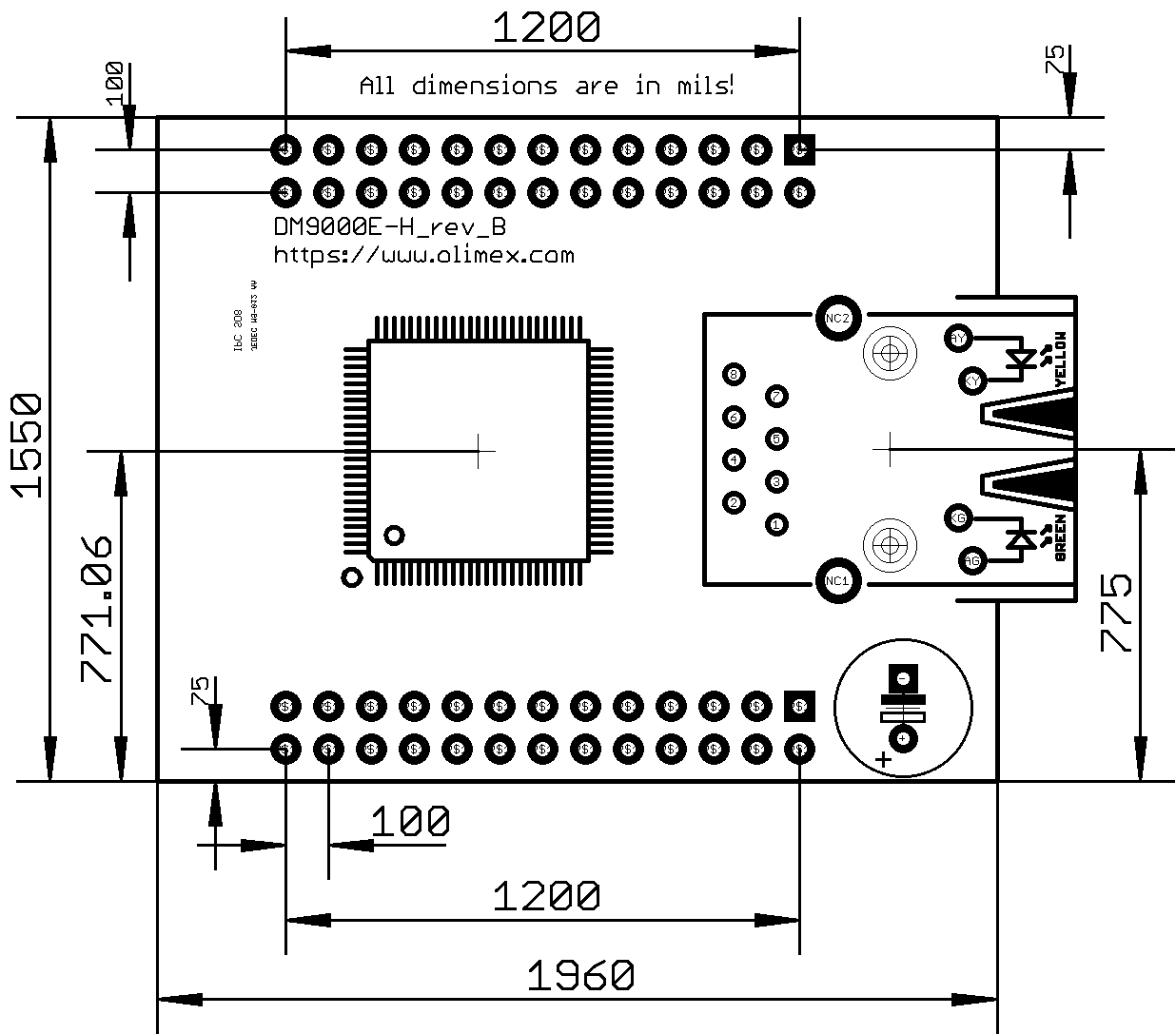

  • Dimensions: 50x40 mm (1.95 x 1.57")
  • space between the pin rows: 33 mm (1.3")

HARDWARE

SOFTWARE
