USB-gLINK

USB-gLINK - Open Source Hardware Board
USB-gLINK - Open Source Hardware Board USB-gLINK - Open Source Hardware Board USB-gLINK - Open Source Hardware Board

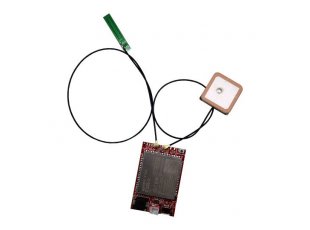

Industrial grade USB 2G 3G 4G LTE modem and Navigation module

Select Product Variant

  • USB-gLINK
  • USB-gLINK-ANT
Price57.00 EUR
In stock
USb-gLINK is OSHW certified Open Source Hardware with UID BG000065

USB-gLINK is industrial grade -25+85C LTE Cat 4 module optimized specially for M2M and IoT applications with integrated LiPo battery power supply and navigation.
Works with OLinuXino, Beaglebone, and Raspberry Pi.
Speed - up to 150Mbps downlink and up to 50Mbps uplink.
Backwards-compatible with existing EDGE and GSM/GPRS networks.
Supports: GPS, GLONASS, BeiDou/Compass, Galileo and QZSS navigation.
Protocols: TCP / UDP / PPP / FTP / HTTP / NTP / PING / QMI / NITZ / SMTP / MQTT / CMUX / HTTPS / FTPS / SMTPS / SSL / MMS / FILE.
USB serial drivers for Windows 7/8/8.1/10, Linux and Android.
Works anywehere in the world: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B38 / B39 / B40 / B41.
Approvals Carrier: Deutsche Telekom (Europe), Verizon/AT&T/Sprint/U.S. Cellular/T-Mobile (North America), Telus/Rogers (Canada)
Regulatory: GCF (Global), CE (Europe), FCC/PTCRB (North America), IC (Canada), Anatel (Brazil), IFETEL (Mexico), SRRC/CCC/NAL (China), KC (South Korea), NCC (Taiwan, China), JATE/TELEC (Japan), RCM (Australia & New Zealand), FAC (Russia), NBTC (Thailand), IMDA (Singapore), ICASA (South Africa)

FEATURES

  • USB 2.0 with USB micro connector
  • Auto power on when connected to USB
  • Build-in LiPo charger and step up converter
  • Works on LiPo battery
  • Nano SIM holder
  • LTE Cat 4, LTE, UMTS / HSPA(+), GSM / GPRS / EDGE
  • 150Mbps downlink and 50Mbps uplink
  • Consumption: 20μA @Power off, 3mA @Sleep, 22mA @Idle
  • Power and reset buttons
  • Three status LEDs
  • Optional GSM antenna and active GPS antenna
  • Operating temperature range: -25+85C
  • Dimensions: (50 x 33 x 8)mm
