MIPI-HDMI

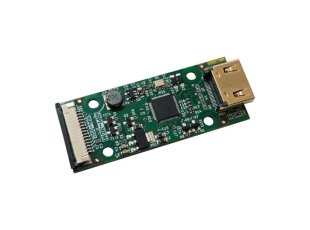

MIPI to HDMI converter
| Price | 7.95 EUR |
|---|
The DSI MIPI-HDMI to HDMI bridge features a single-channel MIPI D-PHY receiver front-end configuration with 4 data lanes per channel operating at 1.5Gbps per data lane and a maximum input bandwidth up to 6Gbps.
The bridge decodes MIPI DSI 18bpp RGB666 and 24bpp RGB888 packets and converts the formatted video data stream to a compatible HDMI1.4 data output.
Works out of the box with ESP32-P4-DevKit.
Note: you will need FPC-15-1.0-150 cable to connect.
The bridge decodes MIPI DSI 18bpp RGB666 and 24bpp RGB888 packets and converts the formatted video data stream to a compatible HDMI1.4 data output.
Works out of the box with ESP32-P4-DevKit.
Note: you will need FPC-15-1.0-150 cable to connect.
FEATURES
- 15 pin FPC connector pin to pin compatible with ESP32-P4-DevKit
- HDMI connector
- One-Channel MIPI DSI Receiver Compliant with D-PHY1.1 and DSI1.02 1 clock lane and 1~4 configurable data lanes
- 80Mbps~1.5Gbps per data lane Only Continuous clock mode supported
- HDMI Transmitter Support HDMI1.4
- Up to 60Hz 1080p 8-bit HDMI output
- Dimensions: 60 x 24 mm
DOCUMENTS
- MIPI-HDMI user manual
- MIPI-HDMI EU declaration of conformity
- MIPI-HDMI UKCA declaration of conformity
HARDWARE
- MIPI-HDMI schematic
- MIPI-HDMI KiCAD source files
