ESP32-C5-EVB
Dual band 2.4Ghz and 5Ghz WiFi 6, Bluetooth 5 LE, Zigbee, Thread, Matter development board with Relays, optoisolated inputs and LiPo battery UPS
| Price | 16.95 EUR |
|---|---|
| 10 - 49 pcs | 16.10 EUR |
| 50 - 10000 pcs | 15.26 EUR |

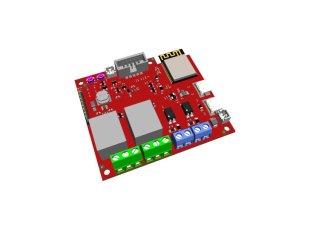

The ESP32-C5-EVB is a brand-new evaluation board built around the ESP32-C5-WROOM-N8R4 module from Espressif, designed to bring dual-band wireless connectivity, ample memory, and robust control features into one compact, versatile package.
FEATURES
- Dual-Band Wi-Fi (2.4 GHz + 5 GHz)
- Bluetooth 5, Zigbee, Thread, Matter
- 8 MB Flash + 4 MB RAM
- Two relays – rated 250V / 10A
- Two opto-isolated inputs
- UEXT connector
- USB-C (Power & Debug)
- USB-C JTAG
- Boot & Reset buttons
- Extension connector
- LiPo UPS charger & step-up converter
- Three mouting holes
- Dimensions 80x70mm
DOCUMENTS
- ESP32-C5-EVB user manual
- ESP32-C5-EVB EU declaration of conformity
- ESP32-C5-EVB UKCA declaration of conformity
HARDWARE
- ESP32-C5-EVB schematic in PDF format
- ESP32-C5-EVB KiCad source files
SOFTWARE
- ESP32-C5-EVB demo code
