MSP430-T5510

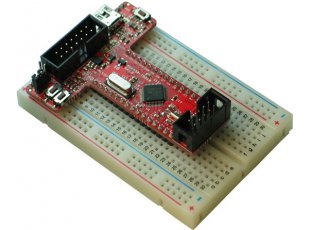

Breadboard friendly T-shaped MSP430F5510 board, based on Ken Segler T-shape board idea.

FEATURES

• MSP430F5510 microcontroller
• USB connector
• User button
• RESET and BSL buttons
• JTAG connector
• UEXT connector for UEXT modules
• T-shape for easy breadboarding
• 4 mount holes

DOCUMENTS

• MSP430-T5510 User manual Revision A
• EU Declaration of Conformity
• UKCA Declaration of Conformity

HARDWARE

• MSP430-T5510 Schematic in PDF format
• MSP430-T5510 Eagle schematic released under Creative Commons Attribution-Share Alike 3.0 United States License
• MSP430-T5510 Eagle board released under Creative Commons Attribution-Share Alike 3.0 United States License

SOFTWARE

• ENERGIA Arduino like IDE
• ENERGIA demo sketch
• OLIMEXINO-5510 button, led demo code with IAR EW-MSP430
• OLIMEXINO-5510 ADC demo code with IAR EW-MSP430
