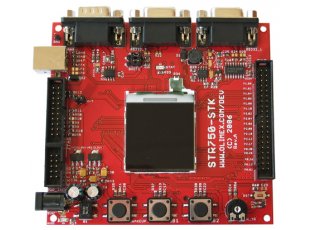

STR750-STK

STR750-STK
Development board for STR750 ARM7TDMI-S microcontroller
Price89.95 EUR
10 - 49 pcs80.96 EUR
50 - 10000 pcs71.96 EUR
In stock

FEATURES

  • MCU: STR750
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • USB 2.0 device port
  • SD-MMC card
  • 2x RS232 interface and drivers
  • 1x CAN interface and driver
  • 3x Buttons
  • Trimmer potentiometer
  • NOKIA 6610 TFT COLOR LCD display 128x128 pixel 12 bit color with backlight
  • UEXT - 10 pin extension connector for Olimex addon peripherials like MP3, RF2.4Ghz, RFID etc. modules
  • On board voltage regulators wiith up to 800mA current
  • Single power supply: 6-9VDC required
  • Power supply LED
  • Power supply filtering capacitor
  • RESET circuit
  • RESET button
  • 4 Mhz crystal
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
  • Dimensions: 110 x 101 mm (4.33 x 3.98")
