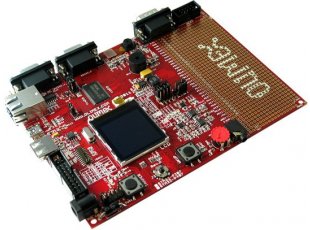

Development board for STM32F407ZGT6 CORTEX-M4 microcontroller
Price109.95 EUR
10 - 49 pcs98.96 EUR
50 - 10000 pcs87.96 EUR
In stock

STM-P407 is a low-cost entry board for developing custom applications with STM32F407ZGT6 Cortex M4 microcontrollers from ST. This board has plenty of RAM, an LCD display and an onboard camera which allows image processing. The Ethernet has a 100MB interface which allows the development of web applications.

FEATURES

  • STM32F407ZGT6 Cortex-M4 210DMIPS, 1MB Flash, 196KB RAM, 3×12-bit 2.4 MSPS A/D, 2×12-bit D/A converters, USB OTG HS and USB OTG HS, Ethernet, 14 timers, 3 SPI, 3 I2C, Ethernet, 2 CANs, 3 12 bit ADCs, 2 12 bit DACs, 114 GPIOs, Camera interface
  • JTAG connector with ARM 2x10 pin layout for programming/debugging
  • 512 KB fast external SRAM on board
  • 4 Status LEDs
  • Stereo Audio Codec CS4344
  • CAN driver
  • Temperature sensor
  • Trimmer potentiometer
  • Joystick for navigation
  • 6610 LCD color 128x128 pixel TFT display
  • SAMSUNG E700 VGA camera 640x480 color
  • Tamper and Wakeup buttons
  • 2 RS232 drivers and connectors
  • 25 Mhz quartz crystal
  • USB_OTG
  • USB_HOST
  • 100Mbit Ethernet
  • micro SD/MMC card connector
  • UEXT connector
  • Power Jack
  • RESET button and circuit
  • Power-on led
  • 3V battery connector
  • Extension port connectors for many of microcontrollers pins
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
  • Dimensions: 160x116 mm (6.3x4.6")
