STM32-P107

STM32-P107
STM32-P107 STM32-P107 STM32-P107

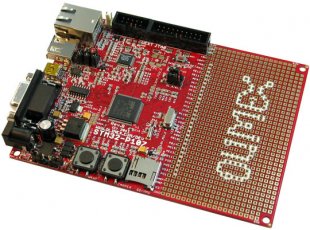

Prototype board for STM32F107 CORTEX-M3 microcontroller
Price45.95 EUR
10 - 49 pcs41.36 EUR
50 - 10000 pcs36.76 EUR
In stock

STM-P107 is a low-cost entry board for developing with STM32F107VCT6 Cortex M3 microcontrollers from ST. This board is the perfect solution for USB peripherals development. Most microcontroller pins are available on the extension connectors and the prototyping area.

FEATURES

  • CPU: STM32F107VCT6 32 bit ARM-based microcontroller with 256 KB Flash, 64 KB RAM, USB OTG, Ethernet, 10 timers, 2 CANs, 2 ADCs, 14 communication interfaces
  • JTAG connector with ARM 2x10 pin layout for programming/debugging
  • Power jack for external power supply: suitable for (6.5-9)VDC or 6VAC
  • USB OTG connector capable of powering the board
  • USB host connector
  • 100 Mbit/s Ethernet driver with RJ-45 connector
  • RS232 driver with DE-09 female connector
  • MiniSD card connector
  • UEXT connector
  • Two user-programmable buttons
  • Reset button and circuit
  • Two user-programmable LEDs
  • Power-on LED
  • 25 Mhz quartz crystal
  • Extension connectors for many of microcontrollers pins
  • Prototype area
  • Easy-to-change PTH jumpers
  • Compatible with the bootloader-related tools provided by STM: "Flash Loader Demo" and "DfuSe Demo"
  • PCB: FR-4, 1.5mm ~ 0.062", soldermask, silkscreen component print
  • Dimensions: (5.2 x 3.8)'' ~ (132 x 97)mm
