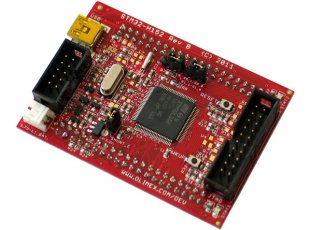

STM32-H152 STM32-H152 STM32-H152
Header board for STM32L152VBT6 low power CORTEX-M3 microcontroller
Price14.95 EUR
10 - 49 pcs13.46 EUR
50 - 10000 pcs11.96 EUR
In Stock

This is a low-cost development board for the new STM32L series of ultra low-power microcontrollers of ST Microelectronics. STM32-H152 covers STM32L152VBT6. This board was carefully designed to low-power handheld operation, with Li-ion battery charges on board and USB. It's perfect to make data loggers. The 32khz crystal allows RTC implementation.


  • MCU: STM32L152VBT6 ARM 32bit CORTEX M3™ with 128K Bytes Program Flash, 16K Bytes RAM, USB, LCD, I2C, SPI, USART, 32 Mhz clock, 80 GPIO, 1.8-3.6V power supply
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • Li-ion battery charger
  • USB connector
  • UEXT connector
  • Wake-up user button
  • RESET button and circuit
  • Two status LED
  • Power supply LED
  • On board voltage regulator 3.3V with up to 800mA current
  • Single power supply: takes power from USB port or extension connector pin
  • 8 Mhz crystal oscillator
  • 32768Hz crystal and RTC backup battery connector
  • Extension headers for all uC ports
  • PCB: FR-4, 1.5 mm (0,062"), red soldermask, silkscreen component print
  • Dimensions: 70x 50mm (2.75 x 2.0")
  • Distance between the exntension connectors: 38.1 mm (1.5")
