LPC-P2129

LPC-P2129
LPC-P2129 LPC-P2129 LPC-P2129

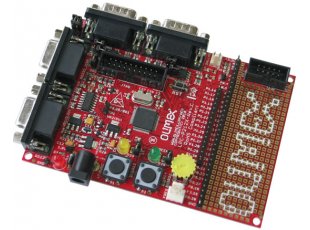

Prototype board for LPC2129 ARM7TDMI-S microcontroller
Price48.95 EUR
10 - 49 pcs44.06 EUR
50 - 10000 pcs39.16 EUR
In stock

FEATURES

  • MCU: LPC2129 16/32 bit ARM7TDMI-S™ with 256K Bytes Program Flash, 16K Bytes RAM, RTC,4x 10 bit ADC 2.44 uS, 2x CAN, 2x UARTs, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • Three on board voltage regulators 1.8V, 3.3V and 5V with up to 800mA current
  • Single power supply: +7-9VDC required
  • Power supply status LED
  • UEXT for connecting with other OLIMEX extension boards
  • Power supply filtering capacitor
  • Two channel RS232 interface with two RS232 SUB-D 9 pin connectors
  • Two channel CAN interface with drivers and two SUB-D 9 pin connectors
  • iButton interface circuit
  • Frequency input connector
  • Two buttons
  • Two status LEDs
  • Potentiometer connected to AIN
  • RESET circuit with exterman control of Philips ISP utility via RS232
  • RESET button
  • DBG jumper for JTAG enable
  • BSL jumper for bootloader enable
  • JRST jumper for enable/disable external RESET vontrol by RS232
  • 10 Mhz crystal
  • Extension headers for all uC ports
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 115x80 mm (4.5x3.2")
