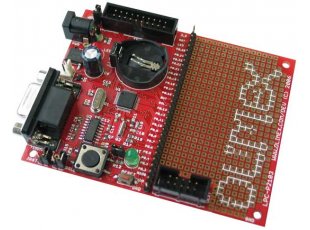

Prototype board for LPC2103 ARM microcontroller
Price32.95 EUR
10 - 49 pcs29.66 EUR
50 - 10000 pcs26.36 EUR
In stock

FEATURES

Microcontroller

  • MCU: LPC2103 ARM7TDMI-S 32-BIT, up to 70Mhz
  • FLASH: 32KB
  • RAM: 8 KB
  • UART: x2
  • SPI: 1 - 7.5 Mbit/sec.
  • SSP: 1 - 30 Mbit/sec
  • I2C: x2
  • ADC: x8 CH, 10-BIT, 400 Ksps
  • PWM: x12
  • TMR: x2 16-BIT, x2 32-BIT
  • RTC: 1
  • I/O: Up to 32, 5V tolerant
  • operating temperature: -40+85C

Board

  • MCU: LPC2103 16/32 bit ARM7TDMI-S™ with 32K Bytes Program Flash, 8K Bytes RAM, RTC, 2x UARTs, 2x I2C, SPI, 5x 32bit TIMERS, 8x 10bit ADC, CCR, PWM, WDT, 5V tolerant I/O, up to 70MHz operation
  • ARM JTAG 2x10 pin connector
  • Extension header for uC pins
  • 14.7456 Mhz crystal allow easy communication setup (4x PLL = 58,9824 Mhz CPU clock)
  • 32768 Hz crystal
  • RS232 interface circuit
  • User button
  • Status LED
  • Power supply LED
  • RTC backup Li-ion battery
  • RESET circuit
  • RESET button
  • DEBUG jumper for JTAG enable/disable
  • BSL jumper for bootloader enable/disable
  • RTCK pullup resistor
  • Push BUTTON with pullup
  • Power plug-in jack
  • Single power supply: +6VAC or 9VDC
  • Two on board voltage regulators 1.8V and 3.3V with up to 800mA current
  • Power supply filtering capacitor
  • UEXT universal extension connector
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Prototype PCB area with +3.3V and GND bus
  • Dimensions: 100x80 mm (3.9x3.15")
  • Four mounting holes
