CS-E9302 CS-E9302 CS-E9302

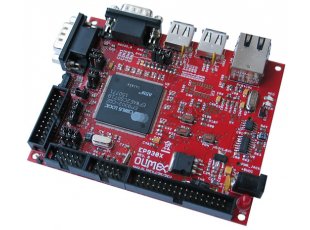

Development board for EP9301/EP9302 ARM920T microcontroller with USB, RS232, ethernet and compact flash connector
Price69.95 EUR
10 - 49 pcs62.96 EUR
50 - 10000 pcs55.96 EUR
In Stock


  • MCU: EP9302 ARM920T 200Mhz, 16+16KB instruction and data cache, MMU, SDRAM, SRAM, FLASH external bus controller 100Mhz bus, 100Mbit Ethernet MAC, two UARTS, two USB 2.0 ports, IrDA, ADC, SPI, I2S Audio, AC97, DMA 12 ch, RTC, dual PLL, WDT, 2- 16 bit, 1- 32 bit TIMERS, boot ROM, interrupt controller,
  • External SDRAM 32MB (16MB x16bit) 7.5 ns /133Mhz
  • External Flash 16MB (8MB x16 bit) 80 ns
  • ETHERNET 10/100 PHY KS8721BL
  • 2 x RS232 drivers and connectors
  • 2 x USB host connectors
  • SD/MMC card
  • IrDA transciever on board
  • UEXT connector with I2C, SPI, RS232 and power supply for connecting add-on modules like RF link, MP3, etc available from Olimex
  • JTAG interface
  • ADC extension port
  • Power supply plug in jack
  • Linux 2.4, Linux 2.6 and NetBSD sources and pre-build images ready to load with Redboot are available for download
  • dimensions: 110x90 mm (4.3 x 3.5")
