Neo6502

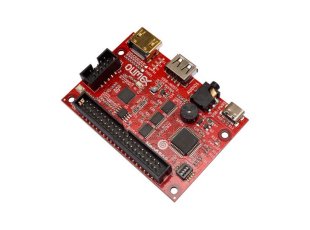

Neo6502 - Open Source Hardware Board
Neo6502 - Open Source Hardware Board Neo6502 - Open Source Hardware Board Neo6502 - Open Source Hardware Board
Neo6502 the modern Open Source Hardware and Software retro computer with W65C02 processor and RP2040
Price30.00 EUR
In Stock
Neo6502 is OSHW certified Open Source Hardware with UID BG000100

Neo6502 is small computer with USB keyboard host and HDMI/DVI output.
To power Neo6502 you need USB-C cable like USB-CABLE-A-RO-C-1M
To program the RP2040 you will need USB-A to USB-A cable as: USB-CABLE-AM-AM
To run Apple2 and Oric/Atmos emulators all you need is Neo6502, USB keyboard, HDMI cable and TV/monitor.
To run NeoBASIC you will also need: USB-NeoHub, USB-Flash

If you want to experiment with 6502BUS you will need also jumper wires and breadboard. All above items are listed on the bottom of this web page.

FEATURES

  • W65C02 processor
  • RP2040 SOC with 2MB Flash
  • UEXT connector
  • 6502BUS connector
  • Audio mini Speaker
  • Audio 3.5mm connector
  • USB-C power supply connector
  • DVI/HDMI connector
  • USB-A host for keyboard
  • Dimensions: 80x55 mm
  • Four mount holes: 3.3mm
