PIC-P40-USB

PIC-P40-USB
PIC-P40-USB PIC-P40-USB PIC-P40-USB

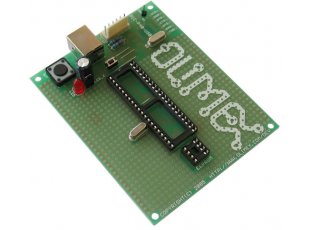

ICSP/ICD enabled 40-pin PIC microcontroller prototype board with USB
Price9.95 EUR
10 - 49 pcs8.96 EUR
50 - 10000 pcs7.96 EUR
In Stock

This board was designed to allow easy interfacing of embedded projects to computers with a USB. The F232 USB-to-RS232 converter IC creates virtual "COM" port to the PC and you can easily send and receive date using the good old fashioned RS232 interface in the PIC microcontroller.

FEATURES

  • Supports all 40-pin PIC microcontrollers in PDIP package
  • ICSP/ICD connector with 0.1'' step for programming or debugging
  • USB to RS232 FT232 converter
  • I2C EEPROM socket
  • Takes power from USB no need for external adapter
  • Power supply filtering capacitors
  • Quartz crystal oscillator circuit 20Mhz
  • Reset button
  • General purpose push button connected to RE2
  • Status LED connected to RE1 via removable jumper
  • DIL40 microcontroller socket
  • Extension pin headers for each uC pin
  • Four mounting holes 3.3 mm (0.13")
  • Grid 100 mils
  • GND bus
  • Vcc bus
  • FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print
  • Dimensions: 100x80 mm (3.9x3.15")

SOFTWARE

  • Blink LED for PIC16F877 demo code (C source and HEX)
  • Button read for PIC16F877 demo code (C source and HEX)
  • RS232 send/receive for PIC16F877 demo code (C source and HEX)
