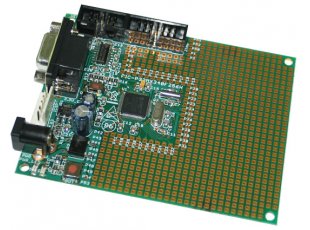

Prototype board for PIC32MX340F512 microcontroller
Price19.95 EUR
10 - 49 pcs17.96 EUR
50 - 10000 pcs15.96 EUR
In stock

PIC32 32-bit MIPS 4K core processor from Microchip offers speed and performance at a low cost. This is an entry level board with a PIC32MX340F512 microcontroller on it with 512KB of flash, 32KB RAM, 80Mhz clock, UARTs, PWMs, DMAs. The board has both ICSP and JTAG connectors so it can be programmed with PIC-KIT3 or JTAG tool

FEATURES

  • PIC32MX340F512 microcontroller
  • UEXT connector for other Olimex modules like MOD-MP3, MOD-NRF24Lx, MOD-SMB380, MOD-RFID125 etc.
  • ICSP/ICD connector for programming with PIC-ICD2 or PIC-ICD2-POCKET.
  • JTAG connector
  • RD232 interface with driver
  • Quartz crystals 8 Mhz and 32768 Hz
  • Status LED
  • User Button
  • Reset button
  • Power plug-in jack with diode bridge rectifier - the board can be powered with AC or DC power supply
  • Wide power supply range on the power jack (6 - 12)V DC or (4.5 - 9)V AC
  • Extension slot on every uC pin
  • Grid 100 mils
  • GND bus
  • Vcc bus
  • Four mounting holes 3,3 mm (0,13")
  • FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Board dimensions: (100 x 80)mm ~ (3.9 x 3.15)"
