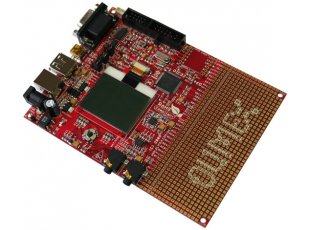

Prototype board for PIC32MX460F512L microcontroller
Price39.95 EUR
10 - 49 pcs35.96 EUR
50 - 10000 pcs31.96 EUR
In stock

The NEW PIC32 32 bit MIPS 4K core processor from Microchip offers speed and performance at low cost. This is entry level board with PIC32MX460F512L microcontroller on it with 512 KB of Flash 32KB RAM, 80Mhz clock, UARTs, PWMs, DMAs. The board have both ICSP and JTAG connectors so it can be programmed with PIC-ICD2 or JTAG tool

Do not use the "programmer-to-go" button when there is no image on the OLIMEX PIC-KIT3 or MICROCHIP PIC-KIT3 or that might put your microcontroller in an irrecoverable state. We have tested the mentioned scenario and we can confirm it destroys PIC32 chips (using both our and the original Microchip PICKIT3). We don't take responsibility if you break your chip that way. For more info check the following: www.microchip.com/forums/m635420.aspx.

FEATURES

  • PIC32MX460F512L microcontroller
  • Audio input
  • Audio output
  • USB host
  • USB device
  • USB OTG
  • provisions for MRF24J40MA module
  • uSD card
  • Reset Circuit
  • Power supply
  • UEXT connector for other Olimex modules like MOD-MP3, MOD-NRF24Lx, MOD-SMB380, MOD-RFID125 etc.
  • ICSP/ICD connector for programming with PIC-ICD2-POCKET.
  • JTAG connector
  • RD232 interface with driver
  • LCD Nokia 3310 BW 84 x48 pixels
  • Quartz crystalls 8 Mhz and 32768 Hz
  • two status LED
  • Joystick
  • Reset button
  • Power plug-in jack with diode bridge can be powered with AC or DC power supply
  • 3.3V voltage regulator
  • Extension slot on every uC pin
  • Gird 100 mils
  • GND bus
  • Vcc bus
  • Four mounting holes 3,3 mm (0,13")
  • FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions 135.9x101.6 mm (5.35x4")
