Olimex A20-OLinuXino-LIME Open Source Hardware embedded ARM Linux Android computer with Allwinner Dual Core Cortex-A7 A20 512MB RAM and 100Mb Ethernet 16GB eMMC 16MB SPI Flash Industrial grade -40+85C

Select Product Variant

  • A20-OLinuXino-LIME
  • A20-OLinuXino-LIME-e16Gs16M
  • A20-OLinuXino-LIME-e4Gs16M
  • A20-OLinuXino-LIME-n8G
  • A20-OLinuXino-LIME-s16M
  • T2-OLinuXino-LIME-e16Gs16M-IND
  • T2-OLinuXino-LIME-e8Gs16M-IND
  • T2-OLinuXino-LIME-IND
  • T2-OLinuXino-LIME-s16M-IND
Price51.00 EUR
10 - 49 pcs48.45 EUR
50 - 10000 pcs45.90 EUR
In Stock

A20-OLinuXino-LIME is OSHW certified Open Source Hardware with UID BG000038

A20-OLinuXino-LIME is a compact (84x60)mm Linux open source hardware computer.

We offer several variants of this board. Aside from the base version we offer a variant with extra eMMC or NAND flash memory (suffix -e4G, -e16G, or -n8G); we have a variant with 16MB SPI flash memory (suffix -s16M). We also have variants of the board suitable for industrial temperature range of operation (-40+85)C - these come with the "T2" chip and have "-IND" suffix in the name.


  • Allwinner A20 dual core Cortex-A7 processor, each core typically running at 1GHz and dual-core Mali 400 GPU
  • 512MB DDR3 RAM memory
  • NAND or eMMC Flash (for A20-OLinuXino-LIME-e/nXXGB)
  • SATA connector with 5V SATA power jack
  • Capable of FullHD (1080p) video playback
  • HDMI connector
  • 2 x USB High-speed host with power control and current limiter
  • USB-OTG with power control and current limiter
  • 100MBit native Ethernet
  • LiPo Battery connector with battery-charging capabilities
  • LCD connector compatible with with 4.3", 7.0", 10.1" LCD modules from Olimex
  • 160 GPIOs on four GPIO connectors
  • MicroSD card connector

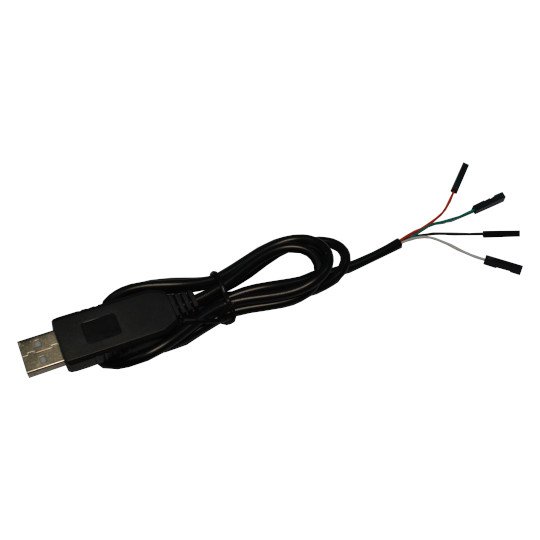

  • DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
  • Battery charge status LED
  • Power LED
  • 2KB EEPROM for MAC address storage and more
  • 3 BUTTONS with ANDROID functionality + RESET button
  • 4 mount holes
  • 5V input power supply, noise immune design
  • PCB dimensions: 84 x 60 mm


  • Outdated image links, instructions, demo software, customer projects and more might be found at the wiki page of A20: A20-OLinuXino-Lime article


  • I am an inexperienced user and I'm afraid to mess up initially. What are the most common errors in the initial start-up of the board?
  • The best idea is to download the latest Linux or Android image and to pay attention if it is for microSD card or the flash memory. After that ensure the image is properly written to the SD card or the NAND memory. Finally, if you are expecting video output problems, ensure the image is set with the proper settings for the display/monitor you are going to use. Double check if the power supply is sufficient (especially if powering a display from the board).
  • Can I use the same Linux or Android image for A10-OLinuXino-LIME or A20-OLinuXino-LIME2?
  • No. Both Linux and Android images are specfic for each board. Make sure the image that you download and use is specifically marked as suitable for A20-OLinuXino-LIME. The prepared cards which we sell for the board are also different.
  • What do I need to connect one of the Olimex-made displays to the board?

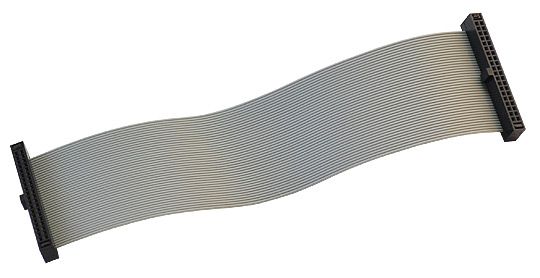

  • You need only a 0.1" step 40-pin cable (named CABLE-40-40-10CM).
  • I bought a supported LCD display and the required cables but when I connect it to the A20-OLinuXino-LIME I receive no image on the display. What do I do wrong?
  • Usually, the default A20-OLinuXino-LIME images are set for HDMI output. Often to use LCD or lower the resolution you would need to change the video output configuration.
  • What is the operating temperature range of A20-OLinuXino-LIME?
  • The board works in the commercial temperature range (0+70)C. We also manufacture board variants that work in the industrial temeperature range (-40+85)C - these are boards with T2 chip and suffix -IND in the na,e (for example, T2-OLinuXino-LIME-IND).
  • How long this board will be available?
  • This board will be available forever
