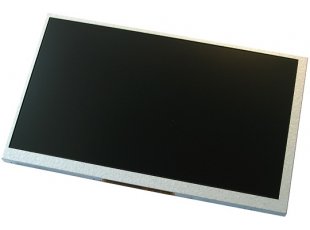

7-inch LCD display with resistive touch screen panel suitable for Olimex OLinuXino boards

This item is OBSOLETE

N/AEUR
OBSOLETE product please use LCD-OLinuXino-7TS

FEATURES

  • Innolux 7'' (480x800) AT070TN9X display with backlight
  • 16 700 000 colors
  • Anti-glare surface
  • Resistive touch-screen panel
  • DC-DC for LCD backlight
  • 40 pin connector for direct connection to A13-OLinuXino boards
  • Testpads for easy diagnostic
  • FR-4, 1.5 mm, red soldermask, component print
  • Dimensions:165x100mm (6.5 x 3.95")

FAQ

  • I bought A13-LCD7TS but when I connect it to the A20-OLinuXino I receive no image on the display. What do I do wrong?
  • The default A20-OLinuXino image is set for a HDMI display and 720p resolution. To use LCD with A20-OLinuXino you need to set proper display settings. Explanation of how to do it via the default script might be found in the wiki article for A20-OLinuXino: https://www.olimex.com/wiki/A20-OLinuXino-MICRO
  • I bought A13-LCD7TS and the SD card that has Linux image written on it. However the resolution I see on my VGA/LCD is not correct. What am I missing?
  • You would need to change the configuration file via the ./change_display* script. Detailed information might be found at the wiki article of your OLinuXino board.
