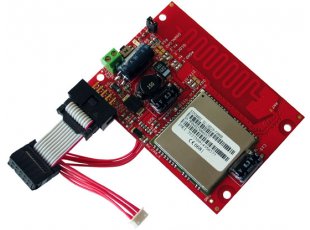

MOD-GSM-B
Extension module which adds GSM connectivity to OLIMEX development boards
with UEXT connector assembled and tested with 3.7V/1200mAh Li-ion battery
This item is OBSOLETE
FEATURES
- MOD-GSM allows every OLIMEX's board with UEXT connector to have GSM 4-band 850/900/1800/1900 MHz connectivity
- uses SIM340DZ GSM module
- PCB: FR-4, 1.5 mm (0,062"), soldermask, white silkscreen component print
- Dimensions: 79x59 mm (3.12 x 2.3")
- 3.7V/1200mAh Li-ion battery
DOCUMENTS
- MOD-GSM user's manual revision E
- SIM340DZ AT commands
HARDWARE
SOFTWARE
- EW-ARM Demo code for MOD-GSM and MOD-GSM-EDGE (high speed) GSM modules connected to STM32-LCD
- Project showing how to use MOD-GSM with DUINOMITE boards Note on the project:
you will have to set CTS low in the DUINOmite board by using
5 SETPIN 6,8
9 PIN(6)=0
or cutting the UEXT cable - Call demo with MOD-GSM and PIC32-PINGUINO-MX220 for Pinguino IDE (refer to the two .txt files in the main archive folder for more info)
- Send/Receive SMS demo with MOD-GSM and PIC32-PINGUINO-MX220 for Pinguino IDE (refer to the two .txt files in the main archive folder for more info)
- PIC32-PINGUINO with MOD-GSM send receive SMS example (refer to the readme and the comments in the code for more info)
- PIC32-PINGUINO with MOD-GSM call recognition example (refer to the readme and the comments in the code for more info)
