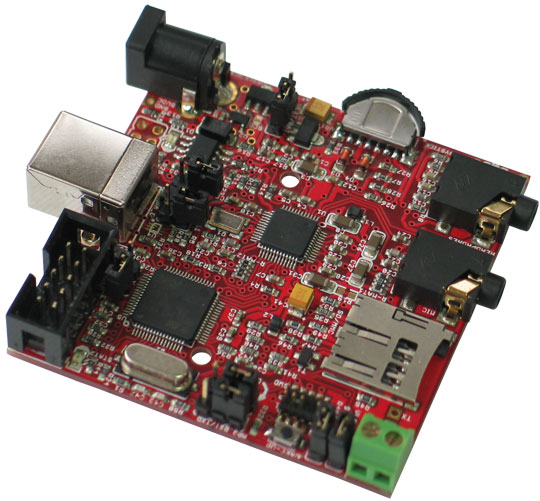

MP3 player module with VS1053 MP3 decoder/encoder
Price39.95 EUR
10 - 49 pcs35.96 EUR
50 - 10000 pcs31.96 EUR
In Stock


  • Based on VS1053 hardware decoder for MPEG 1 & 2 audio layer 3 (ISO 11172-3), MP3+V, WAV and PCM files ; supports ADPCM encoding and decoding
    supports VBR (variable bitrate) for MP3; Supports streaming
  • Single 1.5V battery cell operation with on board low power DC/DC voltage boost converter
  • On board STM32F103RBT6 microcontroller
  • USB mass storage device
  • Accepts commands for play, stop, forward, reverse through RS232 which allow easy adding voice, music to your project with microcontroller
  • UEXT to connect to host microcontroller (standard connector on our ARM development boards)
  • Can work as stand-alone MP3 player operation
  • SD/MMC card on board
  • Li-ion charger and 3.7V 1200mAh battery
  • Stereo Audio microphone jack, Stereo Audio headphones jack
  • Can be used to record and playback
  • Triple action lever switch: Forward, Reverse, Play/Pause action
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 60x60 mm (2.36x2.36")
