MOD-LCD6610

MOD-LCD6610 - Open Source Hardware Board
MOD-LCD6610 - Open Source Hardware Board MOD-LCD6610 - Open Source Hardware Board MOD-LCD6610 - Open Source Hardware Board
TFT LCD 128x128 pixel, 12-bit color with backlight Nokia6610
Price25.95 EUR
10 - 49 pcs23.36 EUR
50 - 10000 pcs20.76 EUR
In stock

MOD-LCD6610 is a development board with a UEXT universal connector. It can be attached and it adds LCD functionality to all other development boards.

FEATURES

  • NOKIA6610 128x128 TFT LCD, 4096 colors, backlight

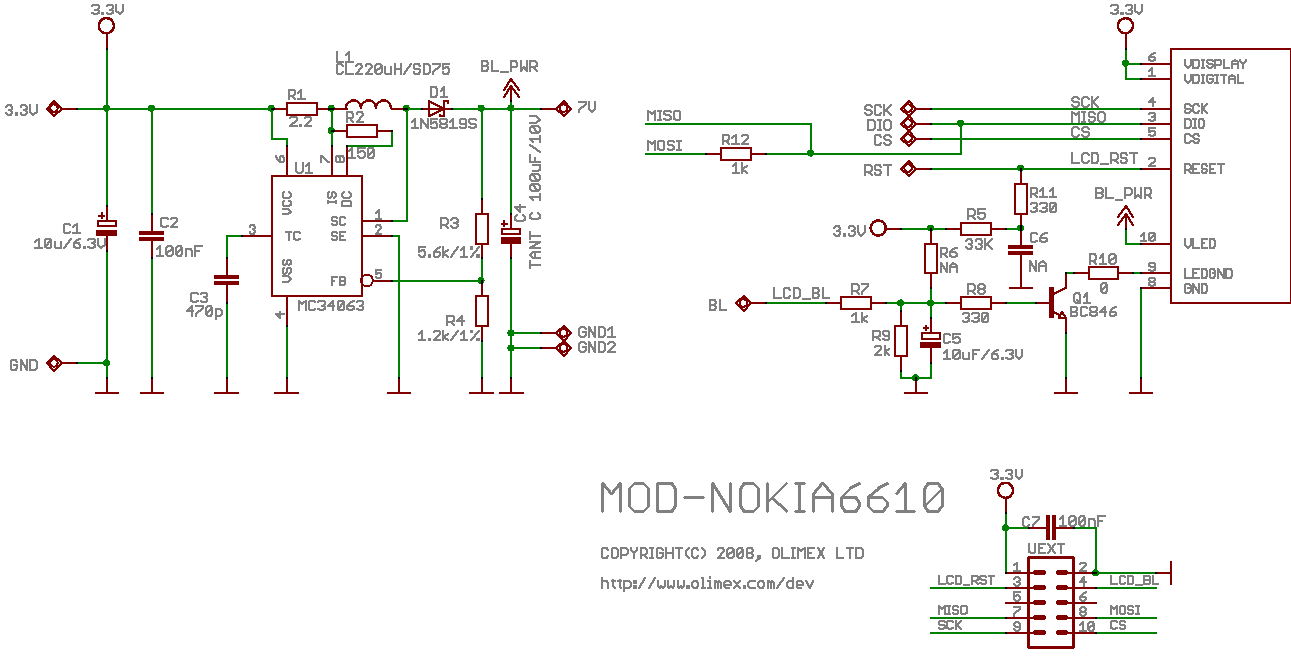

  • DC/DC backlight converter
  • Uses either Phillips PCF8833 (GE12) controller or Epson S1D15G00 (GE08)
  • UEXT to connect to host microcontroller (standard connector on our ARM development boards)
  • SPI data interface on the UEXT connector
  • Additonal LCD reset and backlight reset pins exposed on the UEXT connector
  • 0.1" step connectors for plug-in on top of other PCB
  • Dimensions: (46x40)mm ~ (1.8x1.6)"
