UEXTx5

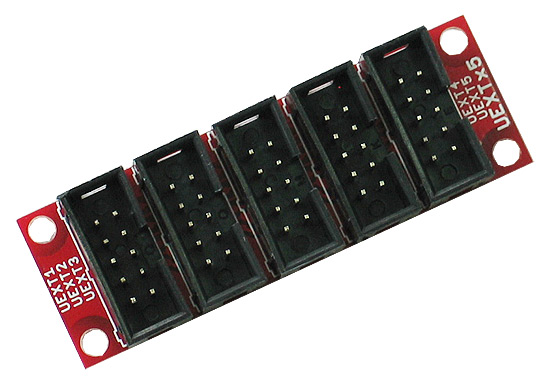

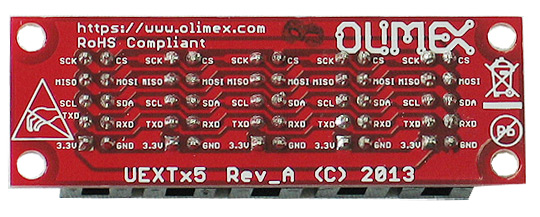

UEXTx5 - Open Source Hardware Board
UEXTx5 - Open Source Hardware Board UEXTx5 - Open Source Hardware Board
UEXT port splitter and extender with 5 UEXT connectors wired in parallel
Price1.95 EUR
10 - 49 pcs1.76 EUR
50 - 10000 pcs1.56 EUR
In stock

Typically this splitter board comes in handy when you have to connect more than one I2C module to an Olimex board. It can also help to connect three or more expansion boards using the different UEXT interfaces - I2C(s), SPI and UART. It saves the hustle of soldering or creating custom cables. It comes without cables but works with our IDC10 cables that might be purchased separately - CABLE-IDC10-15cm.

FEATURES

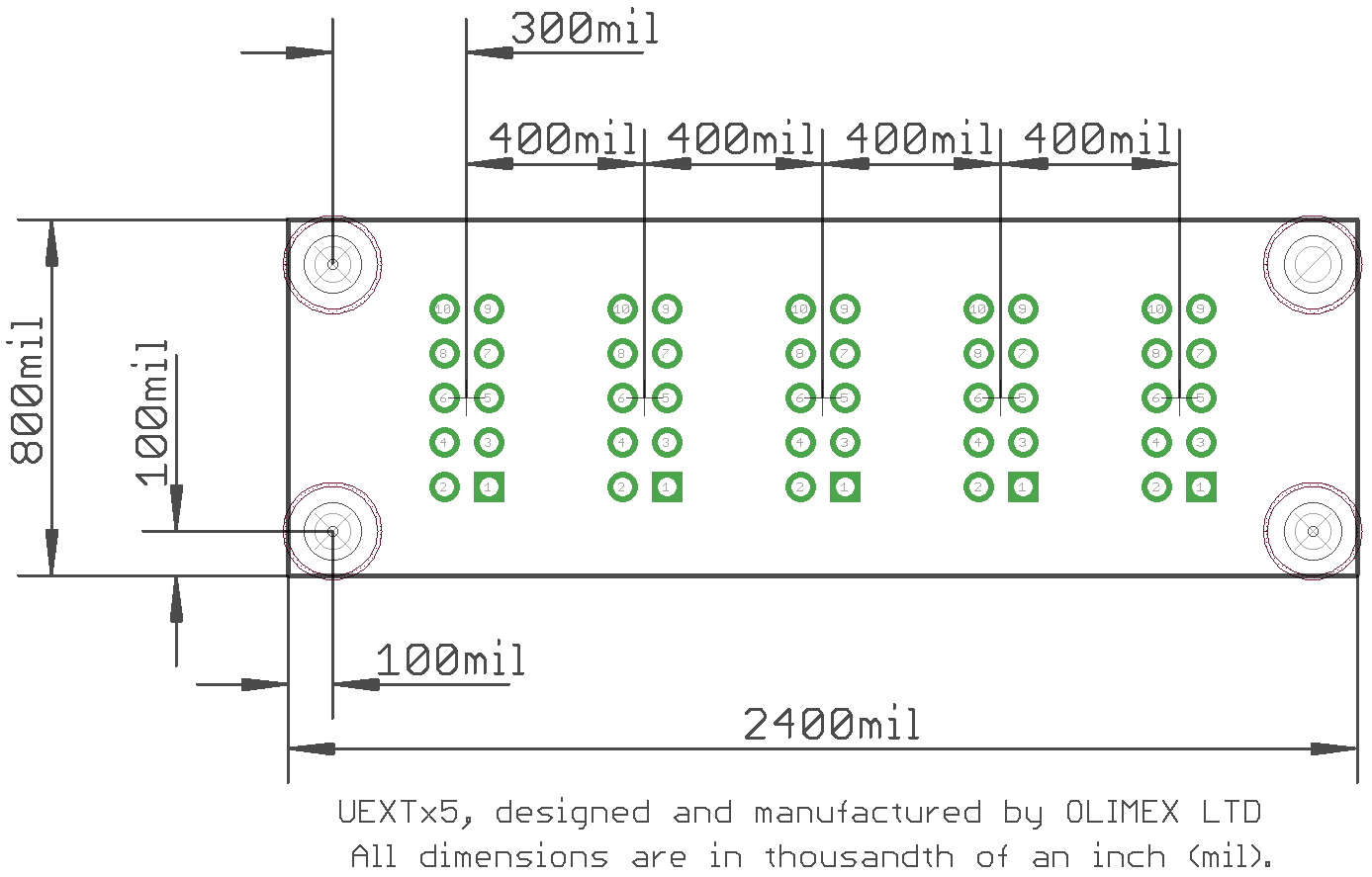

  • Dimensions: (2400 x 800)mils ~ (61 x 20)mm
