MOD-ENC28J60

MOD-ENC28J60
MOD-ENC28J60 MOD-ENC28J60 MOD-ENC28J60

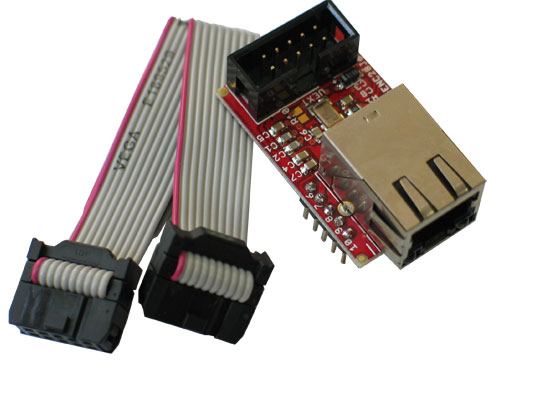

Development board with UEXT connector and 10 MBit ENC28J60 Ethernet controller
Price13.95 EUR
10 - 49 pcs12.56 EUR
50 - 10000 pcs11.16 EUR
In stock

FEATURES

  • MOD-ENC28J60 is the easiest way to add 10 Mbit ethernet connectivity to any of our boards with UEXT connector
  • ENC28J60 Ethernet controller with UEXT connector for easy connection to our other development boards with UEXT connector
  • LAN connector with build in transformer
  • Two status LEDs on LAN connector
  • SPI interface takes only few pins to add Ethernet interface to your microcontroller project
  • UEXT 10 pin interface on 0.1" row pins header
  • Backward compatibility with ENC28J60-H with 2 x 5 pin header
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 40x24 mm (1.55 x 0.95")
  • Space between the pin rows: 20 mm (0.8")
