World smallest ENC28J60 Ethernet controller development board
Price13.95 EUR
10 - 49 pcs12.56 EUR
50 - 10000 pcs11.16 EUR
In stock

FEATURES

  • ENC28J60 Ethernet controller in the world's most compact header form
  • LAN connector with build in transformer
  • Two status LEDs on LAN connector
  • SPI interface takes only few pins to add Ethernet interface to your microcontroller project
  • 10 pin interface on 0.1" row pins header
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print

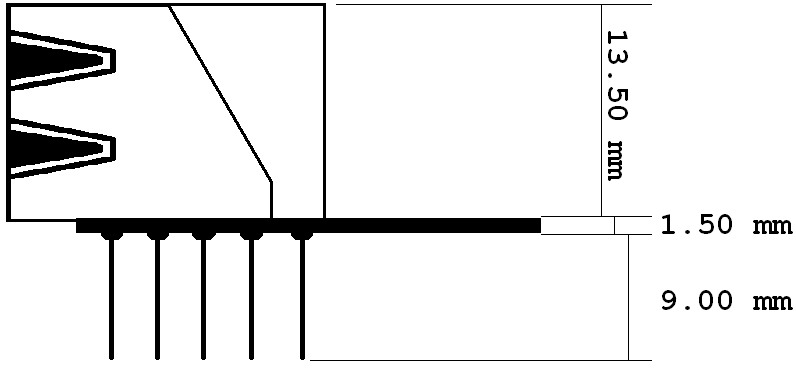

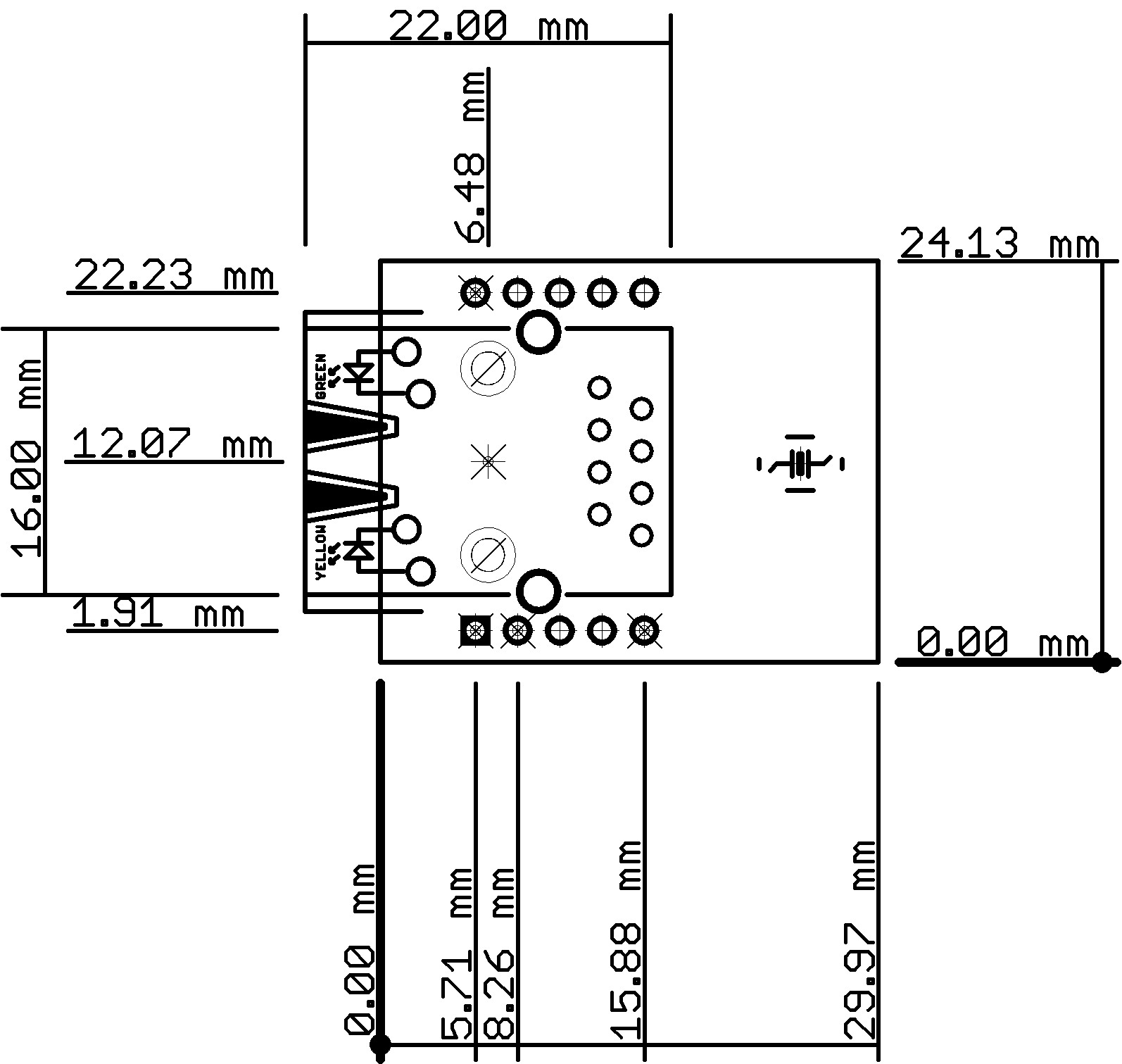

  • Dimensions: 30x24 mm (1.18 x 0.95")
  • Space between the pin rows: 20 mm (0.8")
