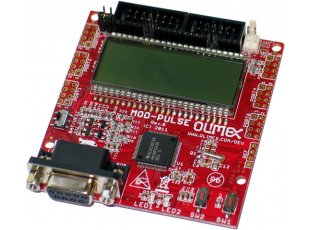

Pulseoxmeter and Heart-Rate monitor using the MSP430FG439 development board
Price19.95 EUR
10 - 49 pcs17.96 EUR
50 - 10000 pcs15.96 EUR
In Stock

FEATURES

  • MSP430FG439 microcontroller
  • LCD display
  • UEXT connector so it can be connected to other boards as heart beat monitor sensor board
  • 3V lithium battery onboard connector
  • Based on Texas Instruments application note SLAA274a
  • JTAG connector for direct plug in MSP430 2x7 JTAG connector to provide power for the target board
  • PCB: FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print
  • Dimensions: 76.2x71.12 mm (3x2.8")

FAQ

  • Do I need additional hardware to get everything going?
  • Yes, you need at least a compatible probe for the PROBE connector. Please refer to the "Related Products" section below. Additionally, you might want to purchase a MOD-USB-RS232 so you can receive the data on a personal computer as well
  • Is the pulse oximeter provided by Texas Instruments compatible with your device?
  • Yes, it is. You might need to change COM port numbering in order to get them work.
  • What does the demo do?
  • The demo shows the pulse oximeter results printed on the screen of the MOD-PULSE. It is written using IAR EW for MSP 4.21
