MOD-LED8x8

MOD-LED8x8 - Open Source Hardware Board
MOD-LED8x8 - Open Source Hardware Board MOD-LED8x8 - Open Source Hardware Board MOD-LED8x8 - Open Source Hardware Board
Stackable LED 8x8 matrix for MSP430-LED8x8-BOOSTERPACK
Price5.95 EUR
10 - 49 pcs5.65 EUR
50 - 10000 pcs5.36 EUR
In Stock

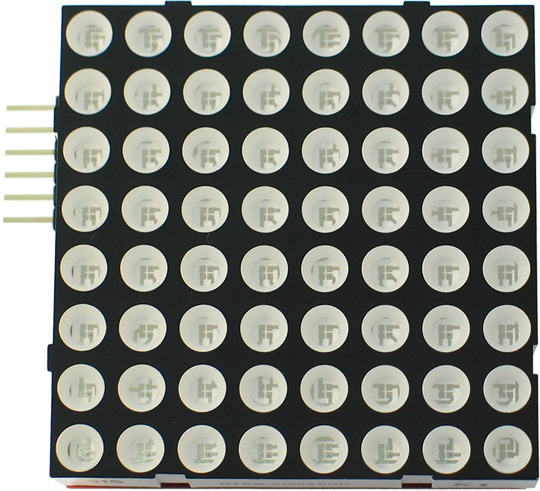

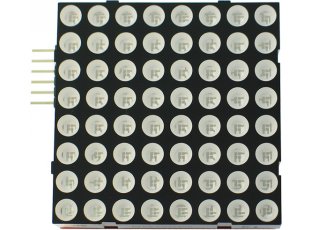

MOD-LED8x8 is a LED stackable matrix which allows you to make a LED array display of any size by stacking a couple of them (snap-on) together. It stacks with a MSP430-LED8x8-BOOSTERPACK which controls it and with additional MOD-LED8x8 you can make a LED array display of any size which to control with the low cost MSP430 Launchpad.

  • LED8x8 brick connector
  • FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print
  • Dimensions 50x50mm (2x2")

This board is typically used as an extension for MSP430-LED8x8-B00STERPACK.

HARDWARE

SOFTWARE

  • DEMO CODE for MSP430-LED8x8-BOOSTERPACK which creates moving text on stackable MOD-LED8x8 bricks
  • ARDUINO IDE examples provided by Lutz Reiter
