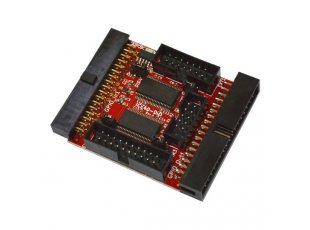

iCE40-DIO

iCE40-DIO - Open Source Hardware Board
iCE40-DIO - Open Source Hardware Board iCE40-DIO - Open Source Hardware Board
iCE40-DIO digital input / output buffer with programmable voltage levels from 1.65V up to 5.5V
Price15.95 EUR
10 - 49 pcs14.36 EUR
50 - 10000 pcs12.76 EUR
In stock

iCE40-DIO adds 28 GPIOs to existing iCE40 boards. These signals can be set as inputs or outputs. The boards has a programmable DAC which can set the input voltage logic from 1.65 to 5.5V

FEATURES

  • Can capture or output 28 signals
  • Signal voltage levels can be in the (1.65 - 5.5)V range set by a programmable DAC
  • Dimensions: (50 x 50)mm

SOFTWARE

  • 100Mhz logic analyzer
  • SigRok API
