AVR-CAN

AVR-CAN
AVR-CAN AVR-CAN AVR-CAN

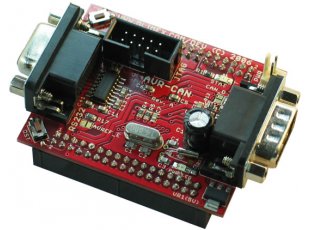

AT90CAN128 development board
Price24.95 EUR
10 - 49 pcs22.46 EUR
50 - 10000 pcs19.96 EUR
In stock

AVR-CAN is an inexpensive way to learn how to use an AT90CAN128 microcontroller from Atmel. It's in a very compact form 60x55mm and the presence of both CAN and RS232 allows the customer to make a bridge between the UART and the CAN networks. All AVR pins are available on extension connectors and the board can be easily connected to a snap-on prototype or to other mother boards where additional circuits are built.

FEATURES

  • MCU: AT90CAN128 - 128Kb Flash, 4Kb EEPROM, 4Kb SRAM, 53 GPIO, 32 working registers, a CAN controller, Real Time CLock, four Timer/Counters with PWM, 2 UARTs, Two-wire Serial Interface, an 8-chanel 10-bit ADC, Watchdog Timer, SPI serial port, JTAG interface, five selectable power saving modes
  • 5x2 pin JTAG connector for programming and debugging with AVR-JTAG-L or AVR-JTAG-USB
  • RS232 DB9 female connector and driver
  • CAN connector and interface
  • User button
  • Status led
  • 16MHz oscillator circuit
  • 32768 Hz oscillator circuit
  • Reset button and circuit
  • On board voltage regulator (+5V)
  • Power supply led
  • Power supply connector
  • Extension pin headers for each uC pin
  • FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 60x50mm (2.36x1.96")

SOFTWARE
