STR-P712

STR-P712

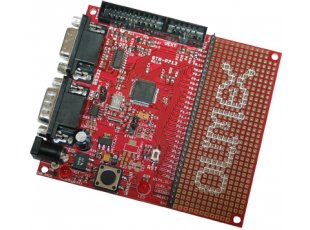

Development board for STR712 ARM7TDMI-S microcontroller
Price51.95 EUR
10 - 49 pcs46.76 EUR
50 - 10000 pcs41.56 EUR
In stock

FEATURES

  • MCU: STR712FR2T6 16/32 bit ARM7TDMI™ with 256K Bytes Program Flash, 64K Bytes RAM, CAN, RTC, 12 bit ADC, 4x UARTs, 2x I2C,2x SPI, 5x 32bit TIMERS, 2x PWM, 2x CCR, WDT, up to 50MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • CAN connector
  • RS232 interface and driver
  • Buttons
  • Status LED
  • UEXT - 10 pin extension connector for Olimex addon peripherials like MP3, RF2.4Ghz, RFID etc. modules
  • On board voltage regulator 3.3V with up to 800mA current
  • Single power supply: 6V AC or DC required
  • Power supply LED
  • Power supply filtering capacitor
  • RESET circuit
  • RESET button
  • 4 Mhz crystal oscillator
  • 32768 Hz crystal and RTC backup battery connector
  • Extension headers for all uC ports
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
  • Dimensions: 100 x 90 mm (3.93 x 3.54")
